Adjustable DC-DC converter, step-down, single output, 3A max output current. Features a wide input voltage range of 4V to 40V and an adjustable output voltage from 1.23V to 37V. Operates at a 52kHz switching frequency with 77% efficiency. Packaged in a TO-263-5 surface mount case, this component is RoHS compliant and suitable for operation between -40°C and 125°C.
Frequency52kHz
PackageTO-263-5
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2576S-ADJ/NOPB technical specifications.
General
| Package/Case | TO-263-5 |
| Efficiency | 77% |
| Frequency | 52kHz |
| Height | 4.57mm |
| Length | 10.16mm |
| Max Input Voltage | 40V |
| Min Input Voltage | 4V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3A |
| Max Output Voltage | 37V |
| Min Output Voltage | 1.23V |
| Max Supply Voltage | 40V |
| Min Supply Voltage | 8V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Current | 3A |
| Output Type | Adjustable |
| Output Voltage | 37V |
| Packaging | Rail/Tube |
| Quiescent Current | 5mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SIMPLE SWITCHER® |
| Synchronous Rectifier | No |
| Termination | SMD/SMT |
| Thickness | 4.58mm |
| Weight | 0.056128oz |
| Width | 8.64mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM2576S-ADJ/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2576S-ADJ/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

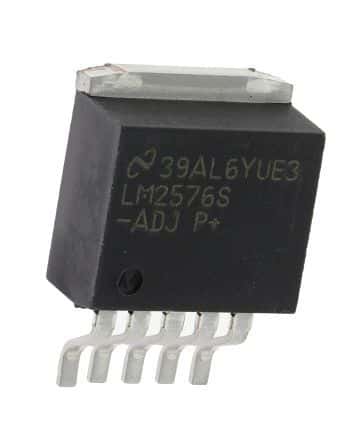

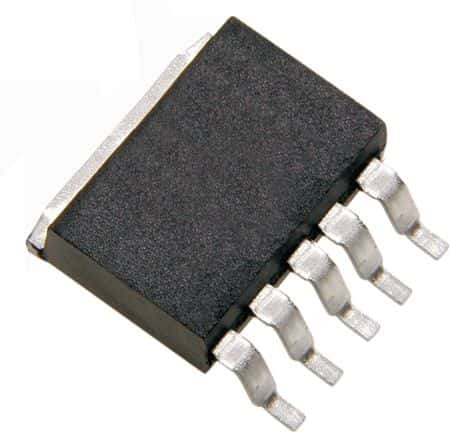

Product Images
