Adjustable 3A step-down regulator with a 4V to 40V input range and up to 37V output. This surface-mount DC/DC controller features a low component count and 77% efficiency, operating from -40°C to 125°C. Packaged in a TO-263-5 (5-DDPAK/TO-263) case, it offers a 3A output current and is RoHS compliant.
PackageTO-263-5
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2576SX-ADJ/NOPB technical specifications.
General
Package/Case
TO-263-5
Efficiency
77%
Height
4.83mm
Length
10.16mm
Max Input Voltage
40V
Min Input Voltage
4V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
37V
Min Output Voltage
1.23V
Mount
Surface Mount
Number of Channels
1
Number of Outputs
1
Operating Supply Voltage
40V
Output Current
3A
Output Type
Adjustable
Output Voltage
37V
Package Quantity
500
Packaging
Tape and Reel
Quiescent Current
5mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Thickness
4.58mm
Width
8.42mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2576SX-ADJ/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2576SX-ADJ/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

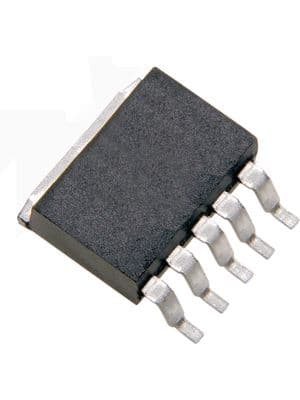

Product Images
