3A, 12V fixed output step-down regulator with a 40V maximum input voltage. This power management IC features a low component count design and operates at a 52kHz switching frequency with 88% efficiency. Packaged in a TO-220-5 through-hole mount, it offers a wide operating temperature range from -40°C to 125°C.
Frequency52kHz
PackageTO-220-5
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM2576T-12 technical specifications.
General
| Package/Case | TO-220-5 |
| Efficiency | 88% |
| Frequency | 52kHz |
| Lead Free | Contains Lead |
| Max Input Voltage | 40V |
| Min Input Voltage | 4V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3A |
| Max Output Voltage | 12V |
| Max Supply Voltage | 40V |
| Min Supply Voltage | 4V |
| Mount | Through Hole |
| Nominal Output Voltage | 12V |
| Number of Outputs | 1 |
| Output Current | 3A |
| Output Type | Fixed |
| Output Voltage | 12V |
| Package Quantity | 45 |
| Packaging | Rail/Tube |
| Quiescent Current | 5mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | SIMPLE SWITCHER® |
| Synchronous Rectifier | No |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments LM2576T-12 Datasheet
Download the complete datasheet for Texas Instruments LM2576T-12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

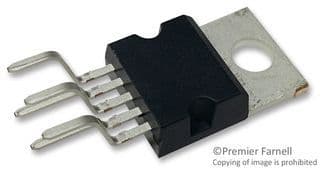

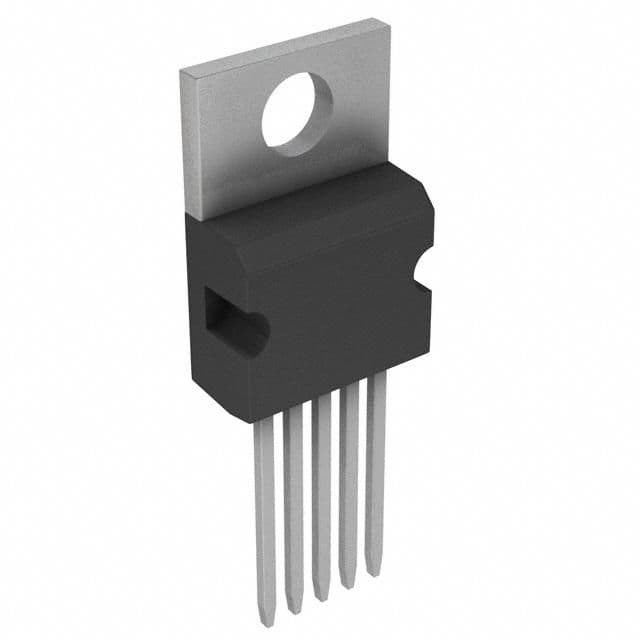

Product Images
