Adjustable output step-up regulator, 3A output current, 3.5V to 40V input voltage range, and up to 60V output voltage. Features 80% efficiency and operates from -40°C to 125°C. Surface mount TO-263-5 package with 10.41mm length, 10.16mm width, and 4.65mm height. This boost converter topology offers low component count and is RoHS compliant.
PackageTO-263-5
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2577S-ADJ/NOPB technical specifications.
General
| Package/Case | TO-263-5 |
| Efficiency | 80% |
| Height | 4.65mm |
| Lead Free | Contains Lead |
| Length | 10.41mm |
| Max Input Voltage | 40V |
| Min Input Voltage | 3.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3A |
| Max Output Voltage | 60V |
| Min Output Voltage | 1.23V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Current | 3A |
| Output Type | Adjustable |
| Output Voltage | 12.4V |
| Packaging | Rail/Tube |
| Quiescent Current | 10mA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SIMPLE SWITCHER® |
| Synchronous Rectifier | No |
| Thickness | 4.58mm |
| Topology | Boost, Flyback, Forward Converter |
| Width | 10.16mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM2577S-ADJ/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2577S-ADJ/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

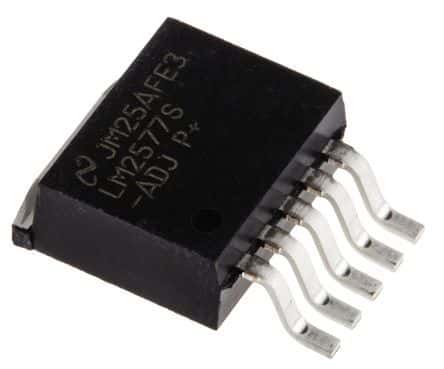

Product Images
