Texas Instruments
LM2577T-15
SIMPLE SWITCHER® 3.5V to 40V, 3A Low Component Count Step-Up Regulator 5-TO-220 -40 to 125
PackageTO-220-5
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM2577T-15 technical specifications.
General
Package/Case
TO-220-5
Lead Free
Contains Lead
Max Input Voltage
40V
Min Input Voltage
3.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Mount
Through Hole
Number of Outputs
1
Operating Supply Voltage
40V
Output Current
3A
Output Type
Fixed
Output Voltage
15V
Package Quantity
45
Packaging
Rail/Tube
Quiescent Current
10mA
Reach SVHC Compliant
No
RoHS Compliant
No
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Topology
Boost
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LM2577T-15 Datasheet
Download the complete datasheet for Texas Instruments LM2577T-15 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

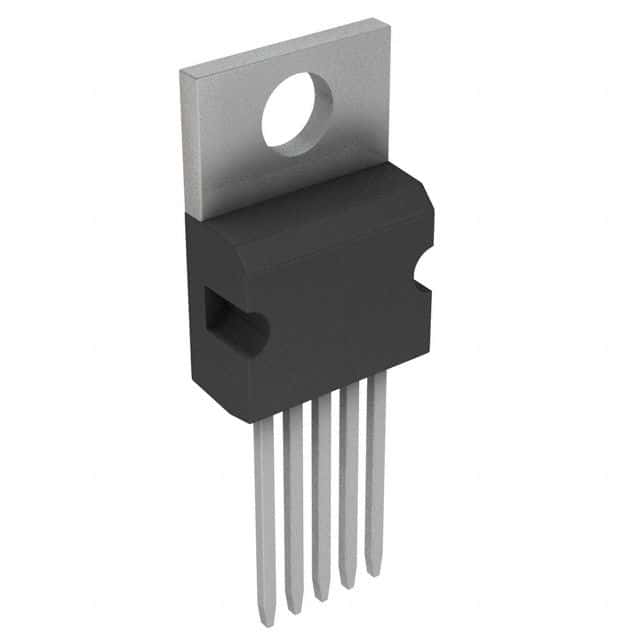

Product Images
