Adjustable DC-DC converter with a 3A maximum output current. Features a wide input voltage range from 3.5V to 40V and an adjustable output voltage from 1.23V up to 60V. This boost converter offers up to 80% efficiency and operates within a temperature range of -40°C to 125°C. Packaged in a 5-pin TO-220 through-hole mount, it supports a single positive output.
PackageTO-220
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM2577T-ADJ/NOPB technical specifications.
General
| Package/Case | TO-220 |
| Efficiency | 80% |
| Height | 8.89mm |
| Lead Free | Contains Lead |
| Length | 10.16mm |
| Max Input Voltage | 40V |
| Min Input Voltage | 3.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3A |
| Max Output Voltage | 60V |
| Min Output Voltage | 1.23V |
| Min Supply Voltage | 3.5V |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 3A |
| Output Type | Adjustable |
| Output Voltage | 12.4V |
| Package Quantity | 45 |
| Packaging | Rail/Tube |
| Quiescent Current | 10mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SIMPLE SWITCHER® |
| Synchronous Rectifier | No |
| Topology | Boost, Flyback, Forward Converter |
| Width | 4.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM2577T-ADJ/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2577T-ADJ/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

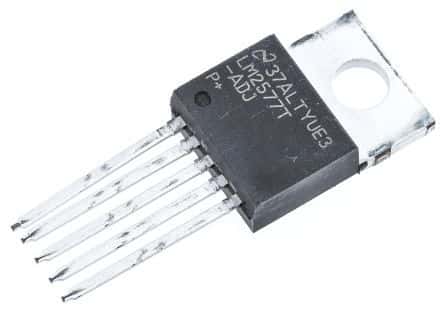

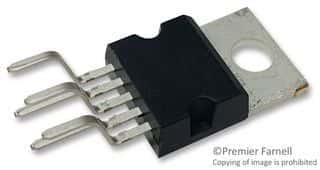

Product Images
