Adjustable 3A DC-DC regulator with a 4V to 40V input range, capable of up to 60V output. This flyback topology device offers 93% efficiency and operates from -40°C to 125°C. Featuring a TO-263-7 surface mount package, it supports a maximum output current of 3A and an adjustable output voltage starting at 1.23V. The device is designed for single positive output configurations.
PackageTO-263-7
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2586S-ADJ technical specifications.
General
Package/Case
TO-263-7
Efficiency
93%
Height
4.57mm
Lead Free
Contains Lead
Length
10.16mm
Max Input Voltage
40V
Min Input Voltage
4V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
60V
Min Output Voltage
1.23V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
40V
Output Configuration
Positive
Output Current
3A
Output Type
Adjustable
Output Voltage
1.23V
Package Quantity
45
Packaging
Rail/Tube
Quiescent Current
11mA
Reach SVHC Compliant
No
RoHS Compliant
No
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Termination
SMD/SMT
Topology
Flyback, Boost, Forward Converter
Width
8.64mm
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LM2586S-ADJ Datasheet
Download the complete datasheet for Texas Instruments LM2586S-ADJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

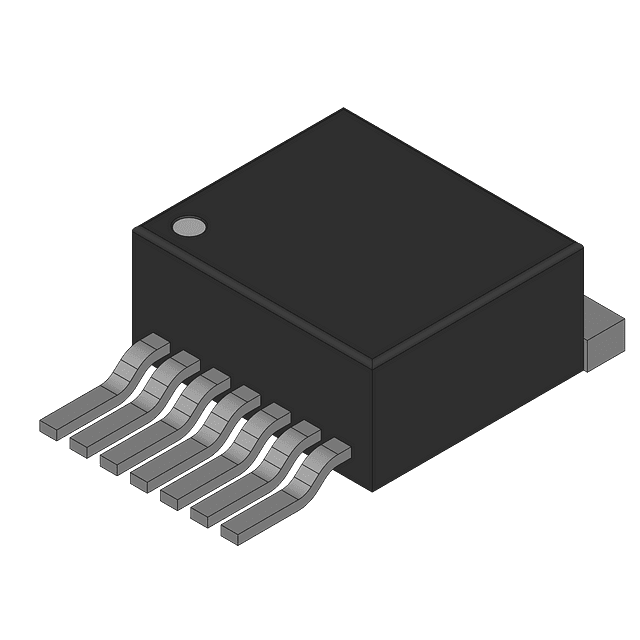

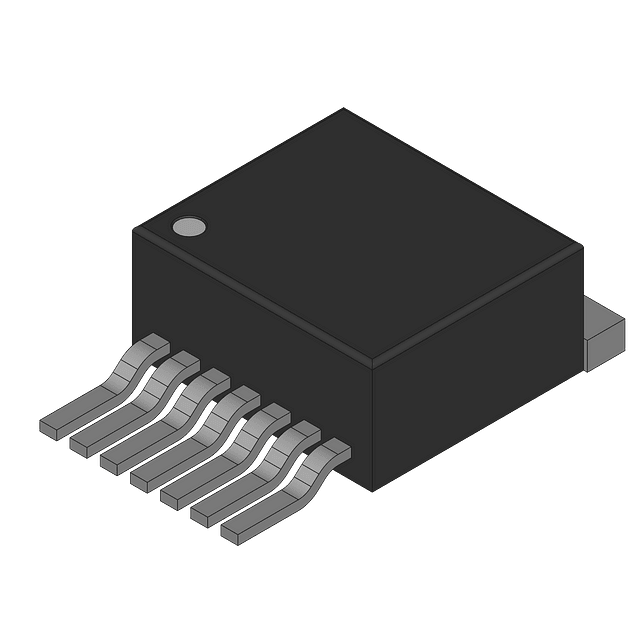

Product Images
