Adjustable positive output DC/DC controller and regulator with a 4V to 40V input range, capable of delivering up to 3A output current. Features a maximum output voltage of 60V and a minimum output voltage of 1.23V, with a high efficiency of 93%. This through-hole mounted component operates across a wide temperature range of -40°C to 125°C and utilizes boost, flyback, and forward converter topologies. Packaged in a TO-220-7 configuration, it offers frequency synchronization for enhanced performance.
PackageTO-220-7
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM2586T-ADJ/NOPB technical specifications.
General
| Package/Case | TO-220-7 |
| Efficiency | 93% |
| Height | 8.69mm |
| Lead Free | Contains Lead |
| Length | 10.16mm |
| Max Input Voltage | 40V |
| Min Input Voltage | 4V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3A |
| Max Output Voltage | 60V |
| Min Output Voltage | 1.23V |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 3A |
| Output Type | Adjustable |
| Output Voltage | 1.23V |
| Packaging | Rail/Tube |
| Quiescent Current | 11mA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SIMPLE SWITCHER® |
| Synchronous Rectifier | No |
| Thickness | 4.572mm |
| Topology | Boost, Flyback, Forward Converter |
| Width | 4.57mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM2586T-ADJ/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2586T-ADJ/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

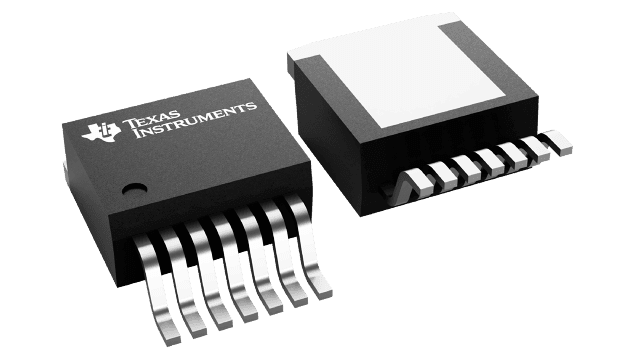

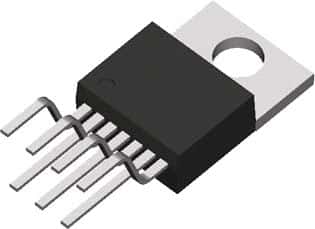

Product Images
