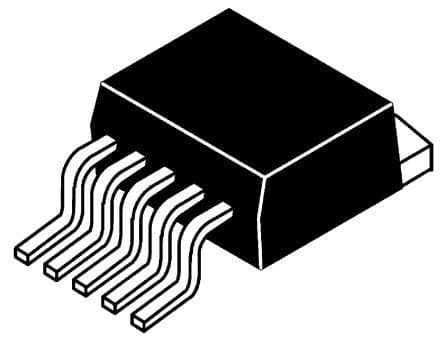

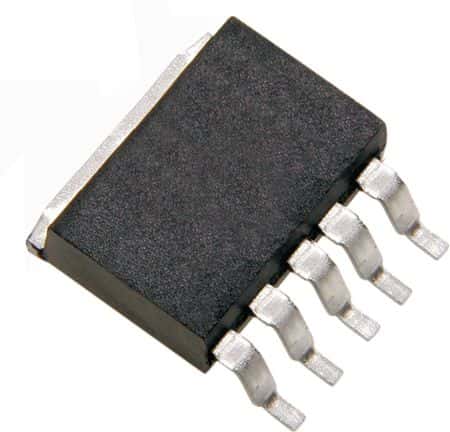

Adjustable 5A DC-DC boost regulator with a wide input voltage range of 4V to 40V. Features a maximum output voltage of 60V and operates at a 115kHz switching frequency, achieving up to 90% efficiency. This surface mount component, housed in a TO-263 package, supports a maximum output current of 5A and is designed for operation between -40°C and 125°C.
Sign in to ask questions about the Texas Instruments LM2587S-ADJ/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments LM2587S-ADJ/NOPB technical specifications.
| Package/Case | TO-263 |
| Efficiency | 90% |
| Frequency | 115kHz |
| Height | 4.57mm |
| Lead Free | Contains Lead |
| Length | 10.16mm |
| Max Input Voltage | 40V |
| Min Input Voltage | 4V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 5A |
| Max Output Voltage | 60V |
| Min Output Voltage | 1.23V |
| Max Supply Voltage | 40V |
| Min Supply Voltage | 4V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 5A |
| Output Type | Adjustable |
| Output Voltage | 1.23V |
| Package Quantity | 45 |
| Packaging | Rail/Tube |
| Quiescent Current | 11mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | LM2587 |
| Termination | SMD/SMT |
| Topology | Flyback, Boost |
| Width | 8.64mm |
| RoHS | Compliant |
