Adjustable 5A DC-DC boost and flyback regulator with a wide input voltage range of 4V to 40V. Features a maximum output voltage of 60V and operates at a 100kHz switching frequency, achieving up to 90% efficiency. This through-hole component, housed in a TO-220 package, supports a maximum output current of 5A and a maximum supply voltage of 40V. Designed for operation across a temperature range of -40°C to 125°C.
Frequency100kHz
PackageTO-220
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM2587T-ADJ/NOPB technical specifications.
General
| Package/Case | TO-220 |
| Efficiency | 90% |
| Frequency | 100kHz |
| Height | 8.64mm |
| Lead Free | Contains Lead |
| Length | 10.16mm |
| Max Input Voltage | 40V |
| Min Input Voltage | 4V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 5A |
| Max Output Voltage | 60V |
| Min Output Voltage | 1.23V |
| Max Supply Voltage | 40V |
| Min Supply Voltage | 4V |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Current | 5A |
| Output Type | Adjustable |
| Output Voltage | 60V |
| Packaging | Rail/Tube |
| Quiescent Current | 11mA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Topology | Boost, Flyback |
| Width | 4.57mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM2587T-ADJ/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2587T-ADJ/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

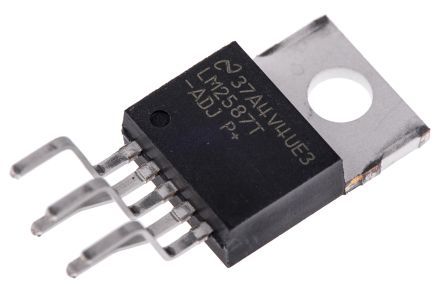

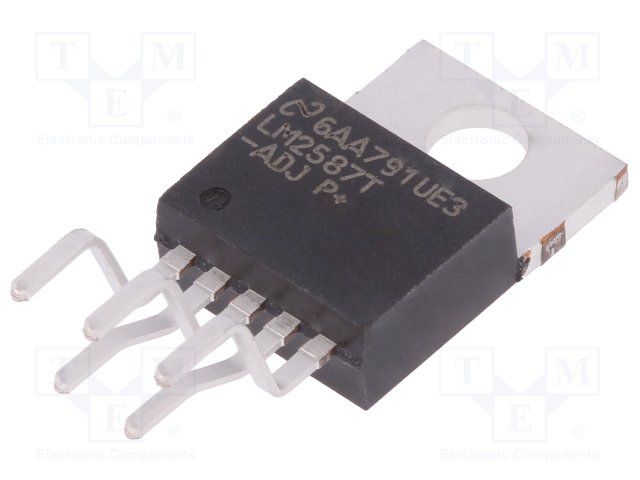

Product Images
