Adjustable 5A DC-DC boost regulator with flyback topology, operating from a 4V to 40V input range. Features frequency synchronization and a maximum output current of 5A. Delivers up to 90% efficiency and supports adjustable output voltages from 1.23V to 12.6V. Packaged in a TO-263 surface-mount case, this component operates across a wide temperature range of -40°C to 125°C.
PackageTO-263
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2588S-ADJ/NOPB technical specifications.
General
| Package/Case | TO-263 |
| Efficiency | 90% |
| Height | 4.57mm |
| Lead Free | Contains Lead |
| Length | 10.16mm |
| Max Input Voltage | 40V |
| Min Input Voltage | 4V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 5A |
| Max Output Voltage | 12.6V |
| Min Output Voltage | 1.23V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 5A |
| Output Type | Adjustable |
| Output Voltage | 1.23V |
| Package Quantity | 45 |
| Packaging | Rail/Tube |
| Quiescent Current | 11mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | LM2588 |
| Topology | Flyback, Boost |
| Width | 8.64mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM2588S-ADJ/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2588S-ADJ/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

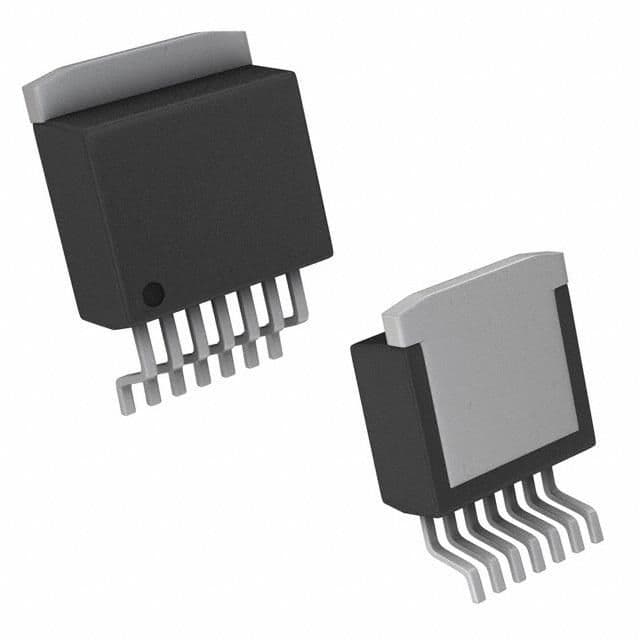

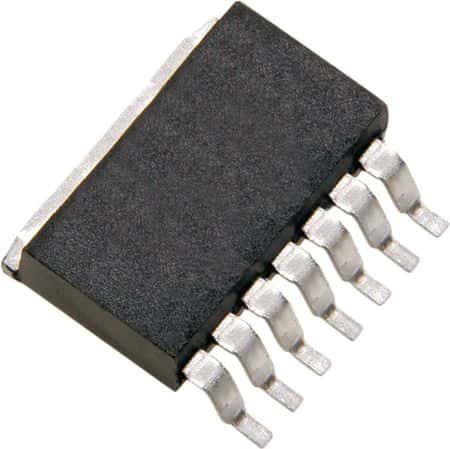

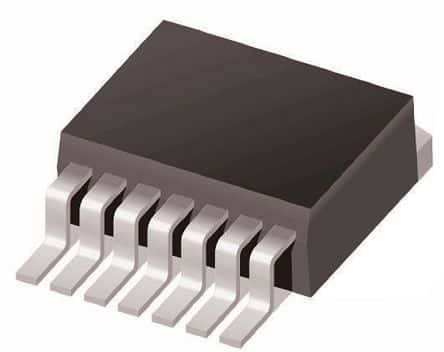

Product Images
