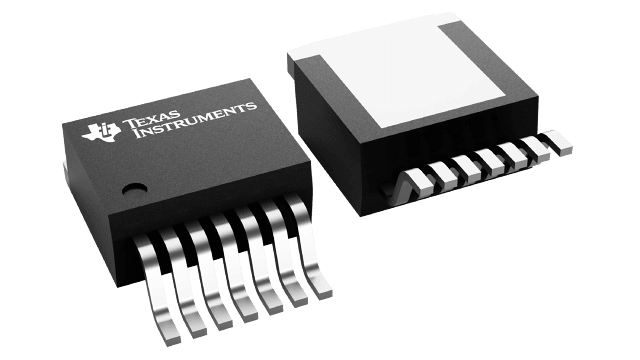

The LM2588T-ADJ/NOPB is a power management IC with a boost and flyback topology. It operates within a temperature range of -40°C to 125°C and has a maximum input voltage of 40V. The device is packaged in a TO-220 case and measures 4.57mm in width, 10.16mm in length, and 8.69mm in height. It is RoHS compliant and has a quiescent current of 11mA. The LM2588T-ADJ/NOPB is suitable for use in applications requiring adjustable output voltage.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LM2588T-ADJ/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-220 |
| Efficiency | 90% |
| Height | 8.69mm |
| Lead Free | Contains Lead |
| Length | 10.16mm |
| Max Input Voltage | 40V |
| Min Input Voltage | 4V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 5A |
| Max Output Voltage | 12.6V |
| Min Output Voltage | 11.4V |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Current | 5A |
| Output Type | Adjustable |
| Output Voltage | 60V |
| Packaging | Rail/Tube |
| Quiescent Current | 11mA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Topology | Boost, Flyback |
| Width | 4.57mm |
| RoHS | Compliant |
