Dual operational amplifier featuring a 1MHz gain bandwidth product and 0.5V/µs slew rate. This general-purpose op-amp offers a 100dB voltage gain and 70dB common mode rejection ratio. Designed for through-hole mounting in an 8-pin TO-5 package, it operates with a supply voltage range of 3V to 32V and a dual supply range of 1.5V to 16V. Key specifications include a 2mV input offset voltage and 45nA input bias current, with an operating supply current of 1mA. Suitable for applications within a -25°C to 85°C temperature range.
Frequency20kHz
PackageTO-5-8
Current500uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM258H/NOPB technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Package/Case
TO-5-8
Common Mode Rejection Ratio
70dB
Gain Bandwidth Product
1MHz
Height
3.68mm
Input Bias Current
45nA
Input Offset Voltage (Vos)
2mV
Lead Free
Lead Free
Max Dual Supply Voltage
16V
Min Dual Supply Voltage
1.5V
Max Frequency
20kHz
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Supply Voltage
32V
Min Supply Voltage
3V
Mount
Through Hole
Number of Channels
2
Number of Circuits
2
Operating Supply Current
1mA
Operating Supply Voltage
16V
Output Current
30mA
Output Current per Channel
40mA
Package Quantity
500
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
Yes
Slew Rate
0.5V/µs
Supply Current
500uA
Voltage Gain
100dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM258H/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM258H/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

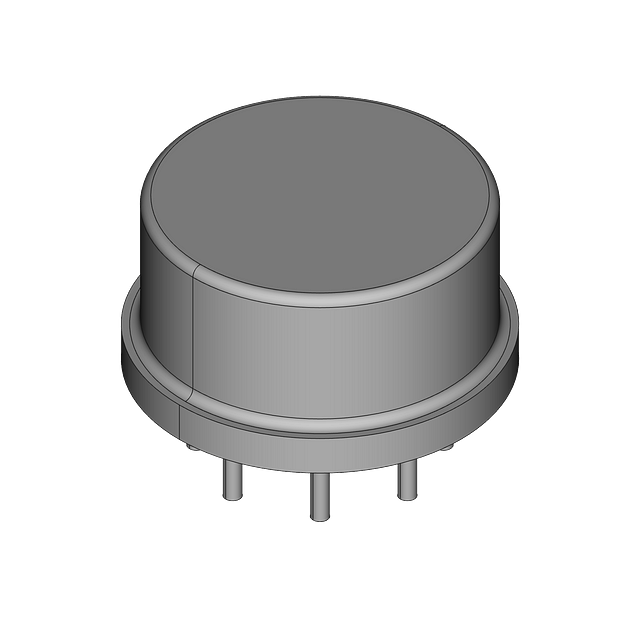

Product Images
