Adjustable 2A step-down voltage regulator with a 150kHz switching frequency. Features a maximum input voltage of 60V and a maximum output voltage of 57V, with an adjustable output from 1.2V. Operates efficiently at 75% and is housed in a TO-220 through-hole package. This RoHS compliant component offers a wide operating temperature range from -40°C to 125°C.
PackageTO-220
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM2592HVT-ADJ/NOPB technical specifications.
General
Package/Case
TO-220
Efficiency
75%
Height
8.64mm
Lead Free
Lead Free
Length
10.16mm
Max Input Voltage
60V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
2A
Max Output Voltage
57V
Min Output Voltage
1.2V
Mount
Through Hole
Number of Outputs
1
Output Configuration
Positive
Output Current
2A
Output Type
Adjustable
Output Voltage
57V
Packaging
Rail/Tube
Quiescent Current
10mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Width
4.57mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2592HVT-ADJ/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2592HVT-ADJ/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

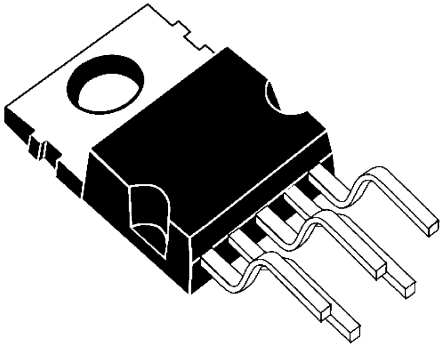

Product Images
