Texas Instruments
LM2595S-12
SIMPLE SWITCHER Power Converter 150 KHz 1A Step-Down Voltage Regulator 5-DDPAK/TO-263 -40 to 125
PackageTO-263-5
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2595S-12 technical specifications.
General
Package/Case
TO-263-5
Lead Free
Contains Lead
Max Input Voltage
40V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Min Output Voltage
12V
Mount
Surface Mount
Nominal Output Voltage
12V
Number of Outputs
1
Output Configuration
Positive
Output Current
1A
Output Type
Fixed
Output Voltage
12V
Package Quantity
45
Packaging
Rail/Tube
Quiescent Current
5mA
Reach SVHC Compliant
Unknown
RoHS Compliant
No
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LM2595S-12 Datasheet
Download the complete datasheet for Texas Instruments LM2595S-12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

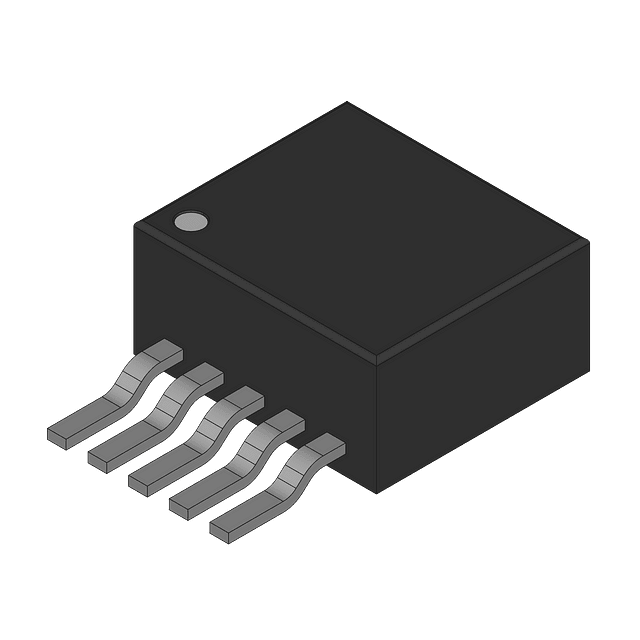

Product Images
