Adjustable 1A step-down voltage regulator operating at 150kHz. Features a maximum input voltage of 40V and a minimum input voltage of 4.5V, with an adjustable output voltage range from 1.2V to 37V. This surface mount component, housed in a TO-263-5 package, offers 78% efficiency and a maximum output current of 1A. Operating temperature range is -40°C to 125°C.
Frequency150kHz
PackageTO-263-5
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2595S-ADJ technical specifications.
General
Package/Case
TO-263-5
Efficiency
78%
Frequency
150kHz
Height
4.65mm
Lead Free
Contains Lead
Length
10.41mm
Max Input Voltage
40V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
37V
Min Output Voltage
1.2V
Max Supply Voltage
40V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Outputs
1
Output Current
1A
Output Type
Adjustable
Output Voltage
37V
Package Quantity
45
Packaging
Rail/Tube
Quiescent Current
5mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
No
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Termination
SMD/SMT
Thickness
4.58mm
Width
8.89mm
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LM2595S-ADJ Datasheet
Download the complete datasheet for Texas Instruments LM2595S-ADJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

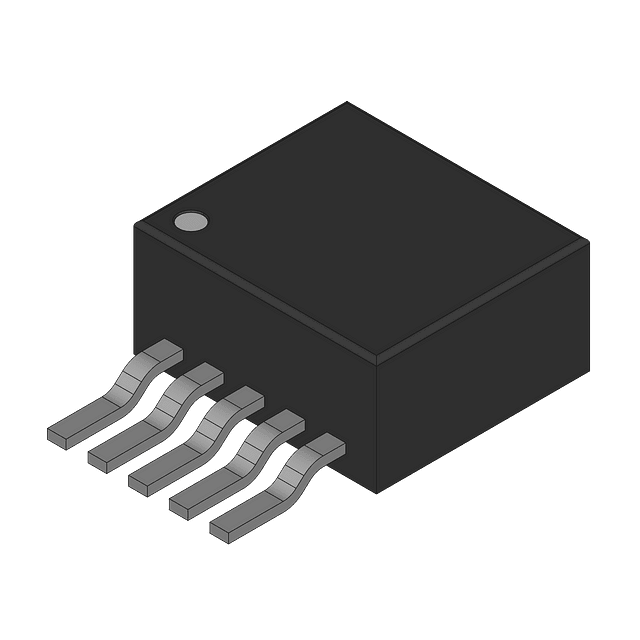

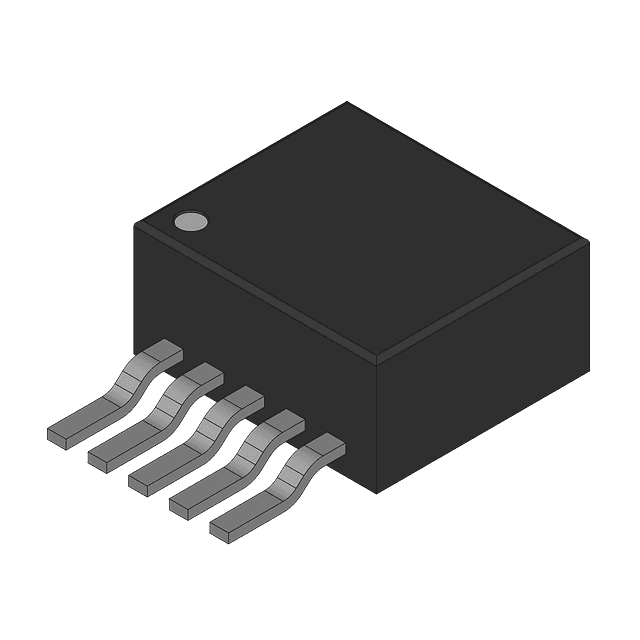

Product Images
