12V fixed output, 3A step-down regulator with a 4.5V to 40V input range. This power management IC features a low component count and 90% efficiency. Packaged in a TO-263 surface mount case, it operates from -40°C to 125°C. The regulator offers a positive, single output configuration.
PackageTO-263
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2596S-12/NOPB technical specifications.
General
Package/Case
TO-263
Efficiency
90%
Height
4.57mm
Lead Free
Contains Lead
Length
10.16mm
Max Input Voltage
40V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Min Output Voltage
12V
Mount
Surface Mount
Nominal Output Voltage
12V
Number of Outputs
1
Output Configuration
Positive
Output Current
3A
Output Type
Fixed
Output Voltage
12V
Packaging
Rail/Tube
Quiescent Current
5mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Width
8.64mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2596S-12/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2596S-12/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

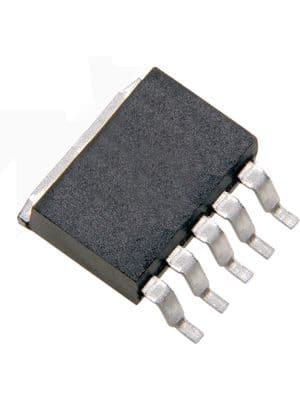

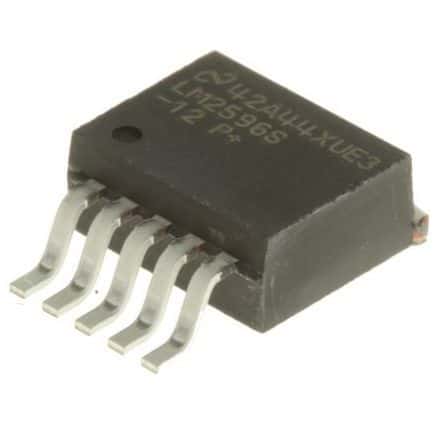

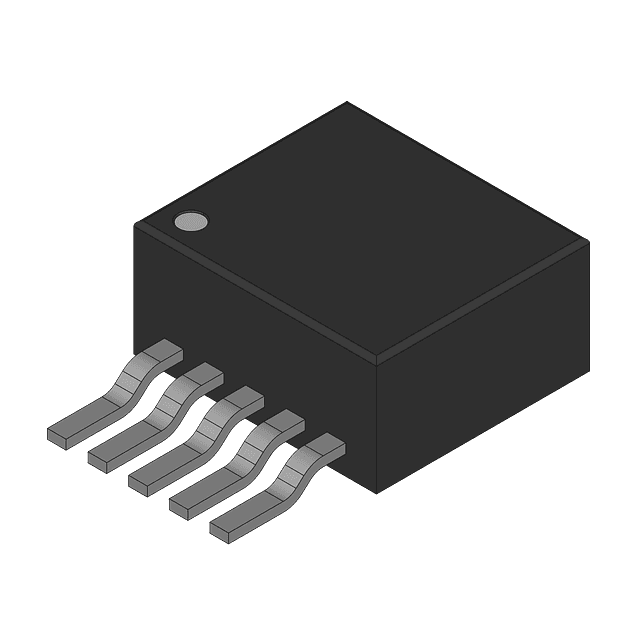

Product Images
