Texas Instruments
LM2596SX-ADJ
SIMPLE SWITCHER® 4.5V to 40V, 3A Low Component Count Step-Down Regulator 5-DDPAK/TO-263 -40 to 125
PackageTO-263-5
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2596SX-ADJ technical specifications.
General
Package/Case
TO-263-5
Efficiency
73%
Lead Free
Contains Lead
Max Input Voltage
40V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Voltage
37V
Min Output Voltage
1.2V
Mount
Surface Mount
Number of Outputs
1
Output Configuration
Positive
Output Current
3A
Output Type
Adjustable
Output Voltage
37V
Package Quantity
500
Packaging
Tape and Reel
Quiescent Current
5mA
Radiation Hardening
No
RoHS Compliant
No
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LM2596SX-ADJ Datasheet
Download the complete datasheet for Texas Instruments LM2596SX-ADJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

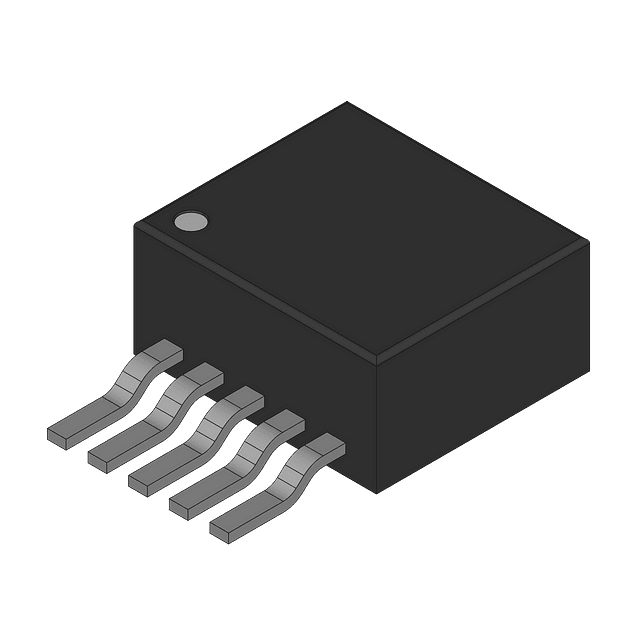

Product Images
