12V fixed output, 3A step-down regulator with a maximum input voltage of 40V and a minimum input voltage of 4.5V. Features 90% efficiency and a low component count design. Packaged in a TO-220 through-hole mount, this positive output regulator operates from -40°C to 125°C. RoHS compliant and lead-free.
PackageTO-220
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM2596T-12/NOPB technical specifications.
General
Package/Case
TO-220
Efficiency
90%
Height
8.64mm
Lead Free
Lead Free
Length
10.16mm
Max Input Voltage
40V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Min Output Voltage
12V
Mount
Through Hole
Nominal Output Voltage
12V
Number of Outputs
1
Output Configuration
Positive
Output Current
3A
Output Type
Fixed
Output Voltage
12V
Packaging
Rail/Tube
Quiescent Current
5mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Width
4.57mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2596T-12/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2596T-12/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

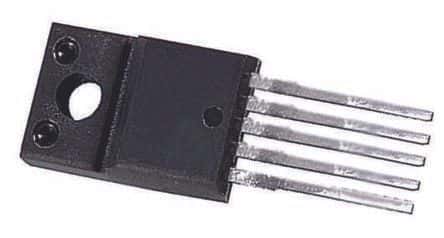

Product Images
