Adjustable 3A step-down voltage regulator, operating from 4.5V to 40V input, delivering up to 37V output. Features a 150kHz switching frequency and 73% efficiency. Packaged in a TO-220-7 through-hole mount, this positive output regulator operates between -40°C and 125°C. RoHS compliant with a 5mA quiescent current.
PackageTO-220-7
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM2599T-ADJ/NOPB technical specifications.
General
| Package/Case | TO-220-7 |
| Efficiency | 73% |
| Height | 8.69mm |
| Lead Free | Lead Free |
| Length | 10.16mm |
| Max Input Voltage | 40V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3A |
| Max Output Voltage | 37V |
| Min Output Voltage | 1.2V |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Operating Supply Voltage | 40V |
| Output Configuration | Positive |
| Output Current | 3A |
| Output Type | Adjustable |
| Output Voltage | 37V |
| Package Quantity | 45 |
| Packaging | Rail/Tube |
| Quiescent Current | 5mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SIMPLE SWITCHER® |
| Synchronous Rectifier | No |
| Width | 4.57mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM2599T-ADJ/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2599T-ADJ/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

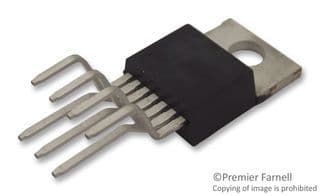

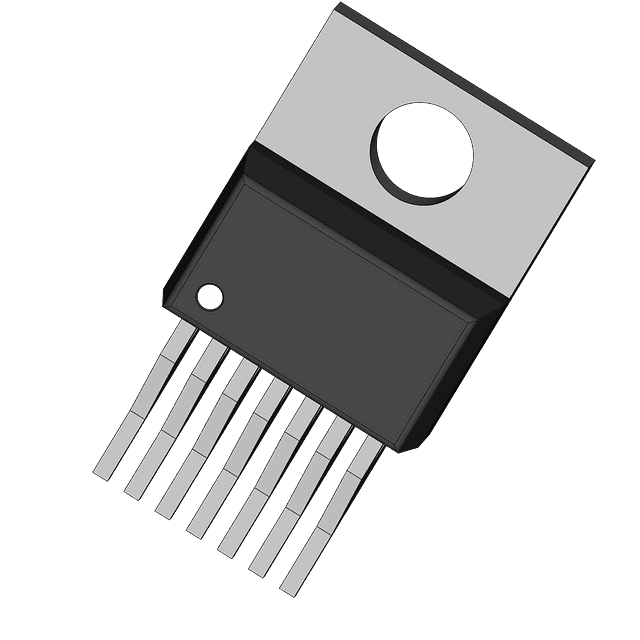

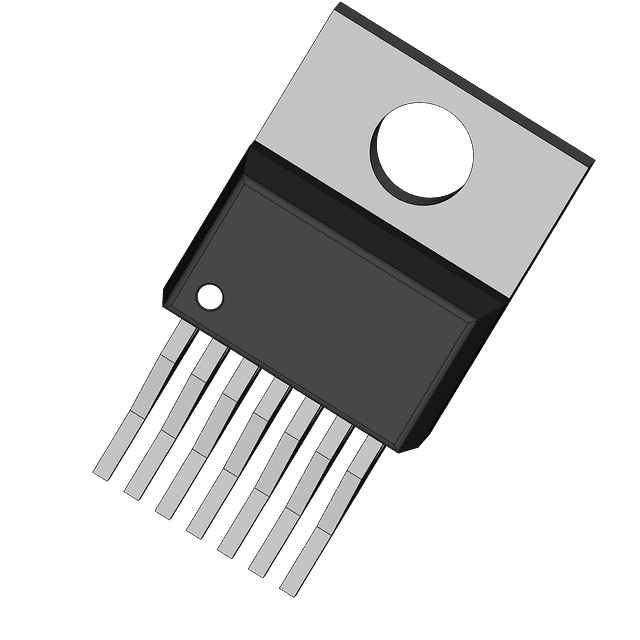

Product Images
