Surface mount charge pump IC, featuring a 160kHz switching frequency, capable of boosting input voltages from 2.5V to 5.5V up to a maximum output of 11V. Delivers a fixed output current of 40mA with a maximum output current capability of 50mA. Encased in a compact 6-pin SOT-23 package, this component operates within a temperature range of -40°C to 85°C. Maximum power dissipation is 600mW, with a quiescent current of 650µA.
Frequency160kHz
PackageSOT-23
Current1.25mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2665M6/NOPB technical specifications.
General
| Package/Case | SOT-23 |
| Frequency | 160kHz |
| Height | 1.02mm |
| Length | 2.92mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 50mA |
| Max Output Voltage | 11V |
| Min Output Voltage | 1.8V |
| Max Power Dissipation | 600mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 40mA |
| Output Type | Fixed, Adjustable |
| Output Voltage | 11V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Quiescent Current | 650uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Supply Current | 1.25mA |
| Synchronous Rectifier | No |
| Termination | SMD/SMT |
| Thickness | 1.2mm |
| Topology | Boost, Charge Pump |
| Weight | 0.00127oz |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM2665M6/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2665M6/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

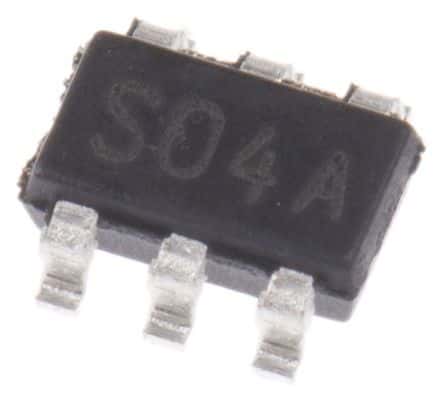

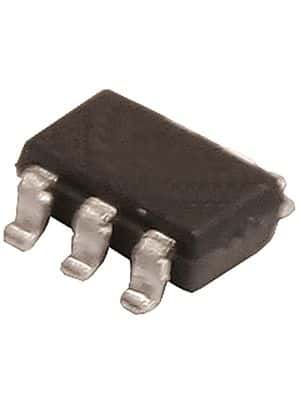

Product Images
