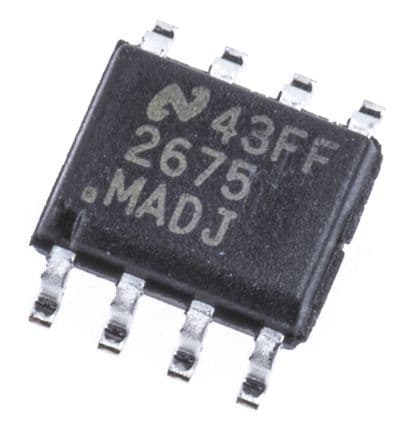

Adjustable 1A DC-DC step-down regulator with a wide input voltage range of 6.5V to 40V. Features a high efficiency of 90% and operates at a switching frequency of 275kHz. This surface mountable component offers an adjustable output voltage up to 37V and a maximum output current of 1A. Designed for a broad operating temperature range from -40°C to 125°C, it is housed in a compact SOIC package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LM2675M-ADJ/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments LM2675M-ADJ/NOPB technical specifications.
| Package/Case | SOIC |
| Efficiency | 90% |
| Frequency | 275kHz |
| Height | 1.45mm |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Max Input Voltage | 40V |
| Min Input Voltage | 8V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Voltage | 37V |
| Min Output Voltage | 1.21V |
| Max Supply Voltage | 40V |
| Min Supply Voltage | 6.5V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 1A |
| Output Type | Adjustable |
| Output Voltage | 37V |
| Packaging | Rail/Tube |
| Quiescent Current | 2.5mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | LM2675 |
| Termination | SMD/SMT |
| Weight | 0.006596oz |
| Width | 3.9mm |
| RoHS | Compliant |
