Texas Instruments
LM2677SD-ADJ/NOPB
5A Step-Down DC/DC Controller, 40V In, Adj/Fixed Out, 260kHz, VSON
High efficiency 5A step-down voltage regulator, featuring adjustable and fixed output types with a maximum output current of 5A and a maximum output voltage of 37V. Operates with a wide input voltage range from 8V to 40V, at a switching frequency of 260kHz. This surface mount device, housed in a 1mm high VSON package, offers 84% efficiency and operates across a temperature range of -40°C to 125°C. RoHS compliant and lead-free.
Frequency260kHz
PackageVSON
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2677SD-ADJ/NOPB technical specifications.
General
| Package/Case | VSON |
| Efficiency | 84% |
| Frequency | 260kHz |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 6mm |
| Max Input Voltage | 40V |
| Min Input Voltage | 8V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 5A |
| Max Output Voltage | 37V |
| Min Output Voltage | 1.2V |
| Max Supply Voltage | 40V |
| Min Supply Voltage | 8V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 5A |
| Output Type | Adjustable, Fixed |
| Output Voltage | 37V |
| Packaging | Cut Tape |
| Quiescent Current | 4.2mA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM2677SD-ADJ/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2677SD-ADJ/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

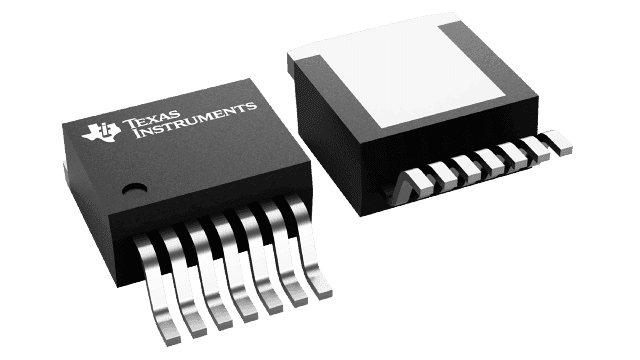

Product Images
