Texas Instruments
LM26LVCISD-085/NOPB
±3°C 1.6V-5.5V Capable, factory preset trip point temperature switch with analog outpu 6-WSON -40 to 150
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM26LVCISD-085/NOPB technical specifications.
General
Interface
Analog
Lead Free
Lead Free
Max Operating Temperature
150°C
Min Operating Temperature
0°C
Max Output Current
7mA
Max Supply Voltage (DC)
5.5V
Min Supply Voltage (DC)
1.6V
Max Supply Voltage
5.5V
Min Supply Voltage
1.6V
Mount
Surface Mount
Operating Supply Current
8uA
Output Current
7mA
Output Type
Analog, Voltage, Digital
Package Quantity
1000
Packaging
Tape and Reel
Quiescent Current
8uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
PowerWise®
Switching Temperature
85°C
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM26LVCISD-085/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM26LVCISD-085/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

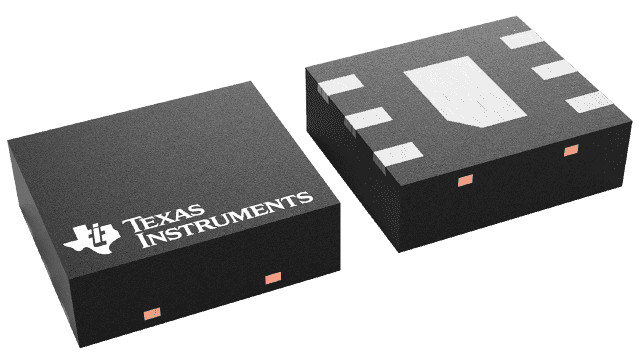

Product Images
