Dual step-down DC/DC converter, featuring adjustable output voltage up to 18V and 2.2A output current per channel. Operates from a 4V to 20V input voltage range with 90% efficiency. This surface mount component is housed in a 24-TSSOP package, measuring 7.9mm x 4.5mm x 1.2mm. Suitable for operation across a wide temperature range of -40°C to 125°C, it is lead-free and RoHS compliant.
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2717MT-ADJ/NOPB technical specifications.
General
| Package/Case | TSSOP |
| Efficiency | 90% |
| Height | 1.2mm |
| Lead Free | Lead Free |
| Length | 4.5mm |
| Max Input Voltage | 20V |
| Min Input Voltage | 4V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Outputs | 2 |
| Operating Supply Current | 500uA |
| Operating Supply Voltage | 20V |
| Output Current | 2.2A |
| Output Type | Adjustable |
| Output Voltage | 18V |
| Package Quantity | 61 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | LM2717-ADJ |
| Weight | 0.007478oz |
| Width | 7.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM2717MT-ADJ/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2717MT-ADJ/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

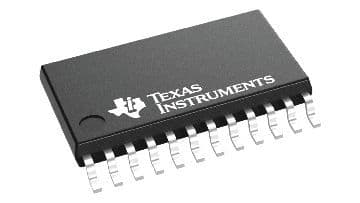

Product Images
