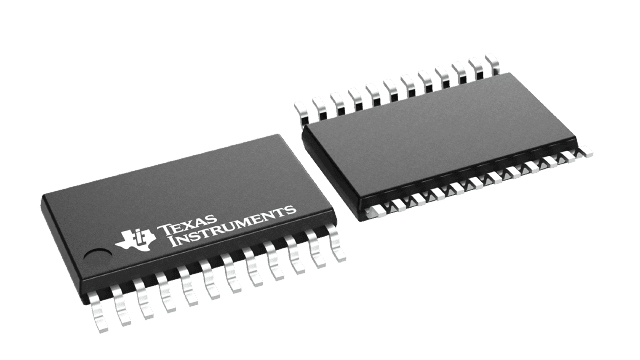

LM2717MT/NOPB

Dual DC/DC Controller, 2.2A/3.2A, 4-20V In, 3.3-18V Out, 600kHz, TSSOP

Dual step-down DC/DC converter, featuring two outputs with adjustable and fixed voltage options up to 18V. Delivers 2.2A on one channel and 3.2A on the second, with a maximum combined output current of 3.2A. Operates efficiently with up to 90% efficiency at a 600kHz switching frequency. Input voltage range spans from 4V to 20V, supporting a wide array of power sources. Packaged in a 24-TSSOP surface-mount configuration, this lead-free component is RoHS compliant and operates across a temperature range of -40°C to 125°C.

Frequency600kHz

PackageTSSOP

MountingSurface Mount

Quick Jump:

Technical Specifications

Texas Instruments LM2717MT/NOPB technical specifications.

General

Package/Case	TSSOP
Current - Output 1	2.2A
Current - Output 2	3.2A
Efficiency	90%
Frequency	600kHz
Height	1.05mm
Lead Free	Lead Free
Length	7.9mm
Max Input Voltage	20V
Min Input Voltage	4V
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Max Output Current	3.2A
Max Output Voltage	18V
Min Output Voltage	3.3V
Max Supply Voltage	20V
Min Supply Voltage	4V
Mount	Surface Mount
Number of Channels	2
Number of Outputs	2
Output Configuration	Positive
Output Current	3.2A
Output Type	Fixed, Adjustable
Output Voltage	18V
Packaging	Rail/Tube
Quiescent Current	2.7mA
Reach SVHC Compliant	No
RoHS Compliant	Yes
Synchronous Rectifier	No
Termination	SMD/SMT
Voltage - Output 1	3.3V
Voltage - Output 2	3.3V
Width	4.5mm
