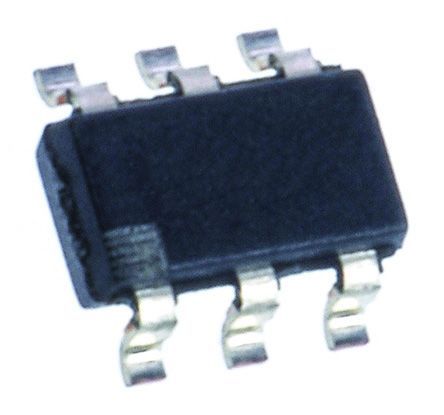

1A Step-Down Converter, featuring adjustable output voltage from 800mV to 18V, with a maximum output current of 1A. Operates with input voltages ranging from 3V to 20V, and a maximum supply voltage of 20V. Achieves up to 90% efficiency at a 660kHz switching frequency. Packaged in a SOT-23-6 surface mount configuration, this component offers a maximum duty cycle of 90% and operates across an industrial temperature range of -40°C to 125°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LM2734YMK/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments LM2734YMK/NOPB technical specifications.
| Package/Case | SOT-23-6 |
| Efficiency | 90% |
| Frequency | 660kHz |
| Lead Free | Lead Free |
| Max Duty Cycle | 90% |
| Max Input Voltage | 20V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Voltage | 18V |
| Min Output Voltage | 800mV |
| Max Supply Voltage | 20V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 1A |
| Output Type | Adjustable |
| Output Voltage | 18V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Quiescent Current | 2.1mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Termination | SMD/SMT |
| Thickness | 870um |
| RoHS | Compliant |
