Adjustable DC-DC step-down converter with 3V to 18V input voltage range and 750mA maximum output current. Features 90% efficiency at 660kHz switching frequency, a 1.5mA quiescent current, and a maximum output voltage of 16V. Designed for surface mount applications in a 6-SOT-23-THIN package, operating from -40°C to 125°C.
Frequency660kHz
PackageTSOT
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2736YMK technical specifications.
General
| Package/Case | TSOT |
| Efficiency | 90% |
| Frequency | 660kHz |
| Lead Free | Contains Lead |
| Max Input Voltage | 18V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 750mA |
| Max Output Voltage | 16V |
| Min Output Voltage | 1.25V |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 750mA |
| Output Type | Adjustable |
| Output Voltage | 16V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Quiescent Current | 1.5mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Synchronous Rectifier | No |
| Termination | SMD/SMT |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments LM2736YMK Datasheet
Download the complete datasheet for Texas Instruments LM2736YMK to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

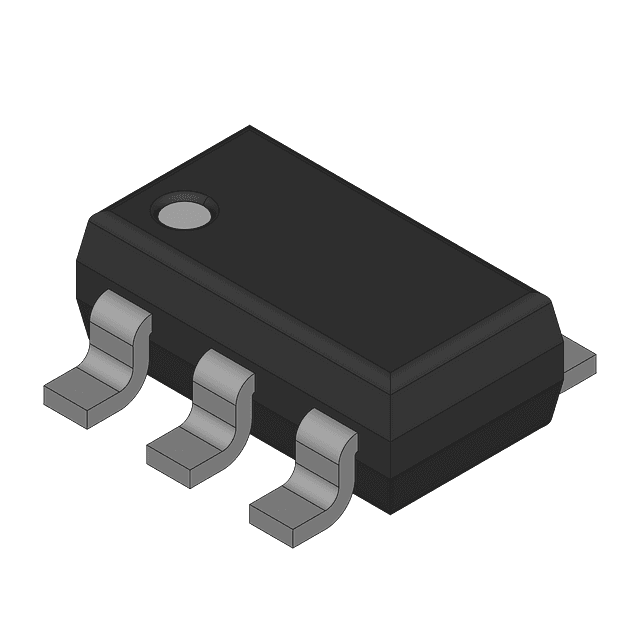

Product Images
