Texas Instruments
LM2753SDX/NOPB
High power switched capacitor Voltage Converter/flash LED driver 10-WSON -40 to 85
Frequency725kHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2753SDX/NOPB technical specifications.
General
Dimming
PWM
Frequency
725kHz
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Outputs
1
Number of Segments
1
Output Current per Channel
400mA
Output Voltage
5.25V
Package Quantity
4500
Packaging
Tape and Reel
Quiescent Current
60uA
Radiation Hardening
No
RoHS Compliant
Yes
Topology
Charge Pump, Boost
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2753SDX/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2753SDX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

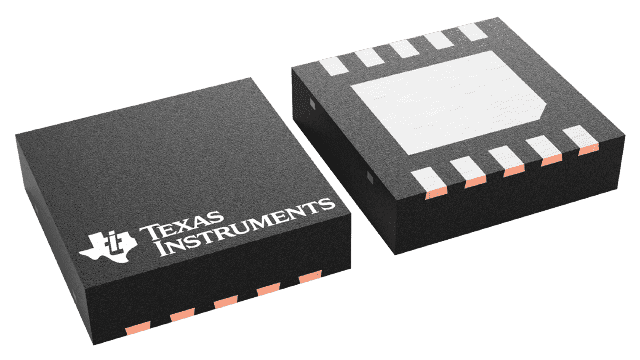

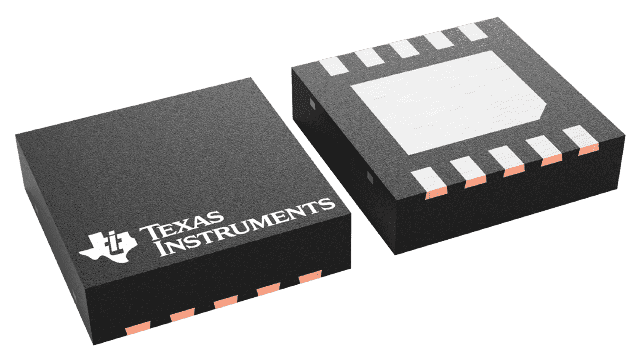

Product Images
