Step-down DC/DC switching regulator with adjustable output voltage from 765mV to 34V. Features a maximum output current of 600mA and operates from a 4.5V to 42V input voltage range. Achieves up to 85% efficiency and boasts a low quiescent current of 1.3mA. Housed in a compact 6-pin TSOT package, suitable for surface mounting. Designed for operation across a wide temperature range of -40°C to 125°C.
PackageTSOT
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2842XMK-ADJL/NOPB technical specifications.
General
| Package/Case | TSOT |
| Efficiency | 85% |
| Height | 0.87mm |
| Lead Free | Lead Free |
| Length | 2.97mm |
| Max Input Voltage | 42V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 600mA |
| Max Output Voltage | 34V |
| Min Output Voltage | 765mV |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 42V |
| Output Current | 600mA |
| Output Type | Adjustable |
| Output Voltage | 34V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Quiescent Current | 1.3mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | LM2842 |
| Synchronous Rectifier | No |
| Width | 1.65mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM2842XMK-ADJL/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2842XMK-ADJL/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

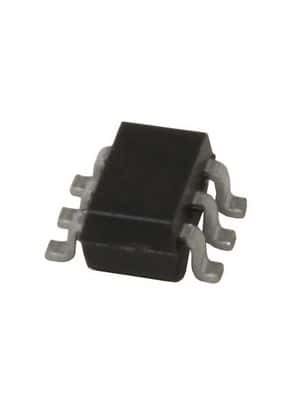

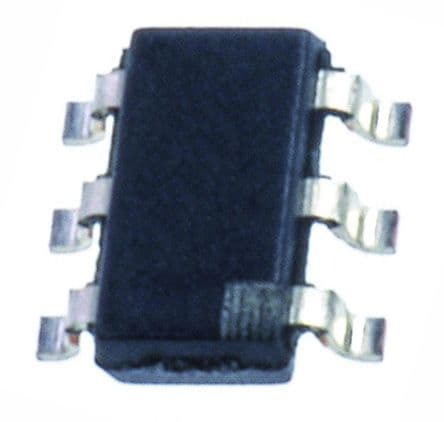

Product Images
