Quad differential comparator IC featuring 4 channels and 4 elements, operating from a 1V to 32V supply range with a typical operating voltage of 28V. Offers a 2mV input offset voltage and 250nA input bias current, with a fast 0.3µs response time. This surface mount component is housed in a 14-SOIC package, measuring 8.65mm in length, 3.91mm in width, and 1.58mm in height. It supports CMOS and TTL output compatibility, delivering up to 6mA output current per channel. Rated for operation between -40°C and 125°C, this RoHS compliant component is supplied on tape and reel.
PackageSOIC
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2901AVQDRG4 technical specifications.
General
Package/Case
SOIC
Dual Supply Voltage
9V
Height
1.58mm
Input Bias Current
250nA
Input Offset Voltage (Vos)
2mV
Lead Free
Lead Free
Length
8.65mm
Max Dual Supply Voltage
16V
Min Dual Supply Voltage
1V
Max Input Current
250nA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Current
2mA
Max Supply Voltage
32V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Channels
4
Number of Elements
4
Operating Supply Voltage
28V
Output Compatibility
CMOS
Output Current
20mA
Output Current per Channel
6mA
Output Type
TTL
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
2.5mA
Radiation Hardening
No
Reach SVHC Compliant
No
Response Time
0.3us
RoHS Compliant
Yes
Series
LM2901AV
Supply Current
2mA
Voltage Gain
100dB
Weight
0.004318oz
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2901AVQDRG4 Datasheet
Download the complete datasheet for Texas Instruments LM2901AVQDRG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

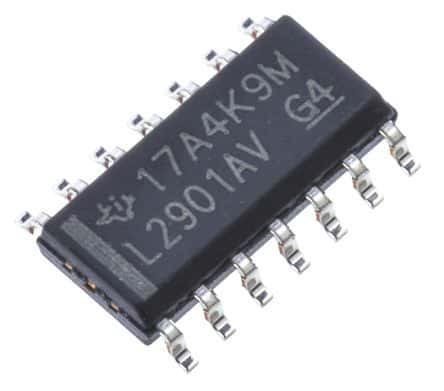

Product Images
