Quad operational amplifier featuring a 1MHz gain bandwidth product and 0.5V/µs slew rate. This general-purpose amplifier offers a 100dB voltage gain and operates with a supply current of 1.5mA. Designed for surface mounting in a SOIC package, it supports a wide operating temperature range from -40°C to 85°C and dual supply voltages from 1.5V to 13V, with a maximum single supply voltage of 26V.
PackageSOIC
Current1.5mA
MountingSurface Mount
Power800mW
Quick Jump:
Technical Specifications
Texas Instruments LM2902M technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1MHz
Package/Case
SOIC
Common Mode Rejection Ratio
50dB
Gain Bandwidth Product
1MHz
Height
1.75mm
Input Bias Current
45nA
Input Offset Voltage (Vos)
7mV
Lead Free
Lead Free
Length
8.65mm
Max Dual Supply Voltage
13V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
26V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Amplifiers
4
Number of Channels
4
Number of Circuits
4
Number of Elements
4
Operating Supply Current
1.5mA
Operating Supply Voltage
13V
Output Current
40mA
Output Current per Channel
40mA
Package Quantity
55
Packaging
Rail/Tube
Power Dissipation
800mW
Power Supply Rejection Ratio (PSRR)
50dB
Reach SVHC Compliant
No
RoHS Compliant
No
Slew Rate
0.5V/µs
Supply Current
1.5mA
Technology
BIPOLAR
Thickness
1.58mm
Unity Gain Bandwidth Product
1MHz
Voltage Gain
100dB
Width
3.91mm
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LM2902M Datasheet
Download the complete datasheet for Texas Instruments LM2902M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

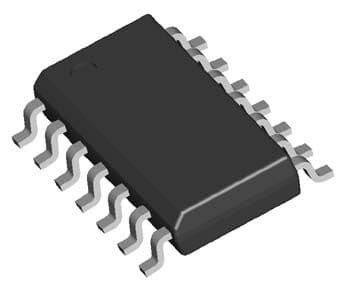

Product Images
