Quadruple general-purpose operational amplifier featuring a 1.2MHz bandwidth and 100dB voltage gain. This component offers a 0.5V/µs slew rate and operates with a wide supply voltage range from 3V to 26V. Designed for through-hole mounting in a 14-PDIP package, it supports dual supply voltages from 1.5V to 13V. With four independent amplifiers, it boasts a 50dB common mode rejection ratio and a 250nA input bias current. Operating temperature range is -40°C to 125°C.
PackagePDIP
Current3mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM2902N technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 1.2MHz |
| Package/Case | PDIP |
| Common Mode Rejection Ratio | 50dB |
| Dual Supply Voltage | 9V |
| Gain Bandwidth Product | 1.2MHz |
| Height | 4.57mm |
| Input Bias Current | 250nA |
| Input Offset Voltage (Vos) | 7mV |
| Lead Free | Lead Free |
| Length | 19.3mm |
| Max Dual Supply Voltage | 13V |
| Min Dual Supply Voltage | 1.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 26V |
| Min Supply Voltage | 3V |
| Mount | Through Hole |
| Number of Amplifiers | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 1.4mA |
| Operating Supply Voltage | 13V |
| Output Current | 30mA |
| Output Current per Channel | 60mA |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Slew Rate | 0.5V/µs |
| Supply Current | 3mA |
| Technology | BIPOLAR |
| Thickness | 3.9mm |
| Unity Gain Bandwidth Product | 1.2MHz |
| Voltage Gain | 100dB |
| Width | 6.35mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Texas Instruments LM2902N Datasheet
Download the complete datasheet for Texas Instruments LM2902N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

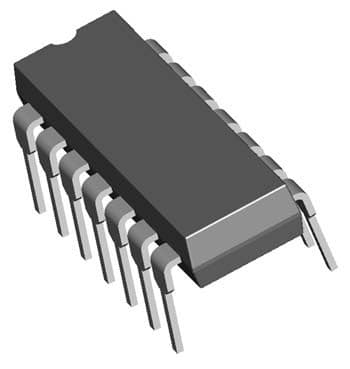

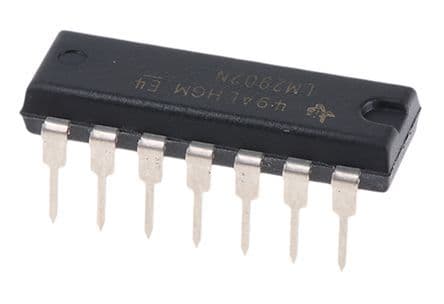

Product Images
