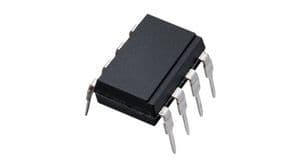

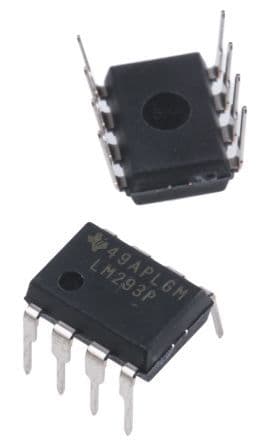

LM293P

Dual differential comparator, industrial grade, featuring two independent comparator elements within a 2-channel configuration. This integrated circuit operates with a dual supply voltage range from 1V to 18V, and a maximum supply voltage of 36V. Key specifications include a low input bias current of 250nA, an input offset voltage of 5mV, and a fast response time of 0.3µs. The component offers TTL output type with an output current of 6mA per channel, and a voltage gain of 106.02dB. Packaged in an 8-PDIP for through-hole mounting, it operates across an industrial temperature range of -25°C to 85°C and is RoHS compliant.
