1-A, 12V fixed output positive linear voltage regulator with a low dropout voltage of 500mV. Features a high Power Supply Rejection Ratio (PSRR) of 66dB and a maximum input voltage of 26V. This surface mount component operates within a temperature range of -40°C to 85°C and is housed in a TO-263 package.
PackageTO-263
Current Rating1A
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM2940CS-12/NOPB technical specifications.
General
Package/Case
TO-263
Current Rating
1A
Dropout Voltage
500mV
Height
4.57mm
Lead Free
Contains Lead
Length
10.16mm
Max Input Voltage
26V
Min Input Voltage
13.6V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1A
Min Output Voltage
12V
Max Supply Current
15mA
Mount
Surface Mount
Nominal Output Voltage
12V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1A
Output Type
Fixed
Output Voltage
12V
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
66dB
Quiescent Current
10mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
8.64mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2940CS-12/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2940CS-12/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

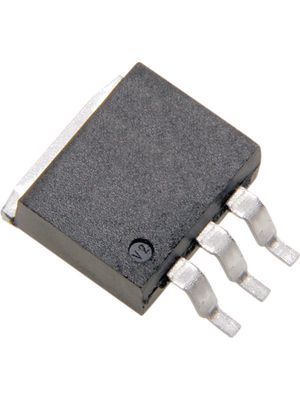

Product Images
