Texas Instruments
LM2940CS-15
1-A, 26-V, high-PSRR, low-dropout voltage regulator 3-DDPAK/TO-263 0 to 125
PackageTO-263
Current Rating1A
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM2940CS-15 technical specifications.
General
Package/Case
TO-263
Current Rating
1A
Dropout Voltage
500mV
Max Input Voltage
26V
Min Input Voltage
16.75V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1A
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Current
1A
Output Type
Fixed
Output Voltage
15V
Package Quantity
45
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
15mA
RoHS Compliant
No
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LM2940CS-15 Datasheet
Download the complete datasheet for Texas Instruments LM2940CS-15 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

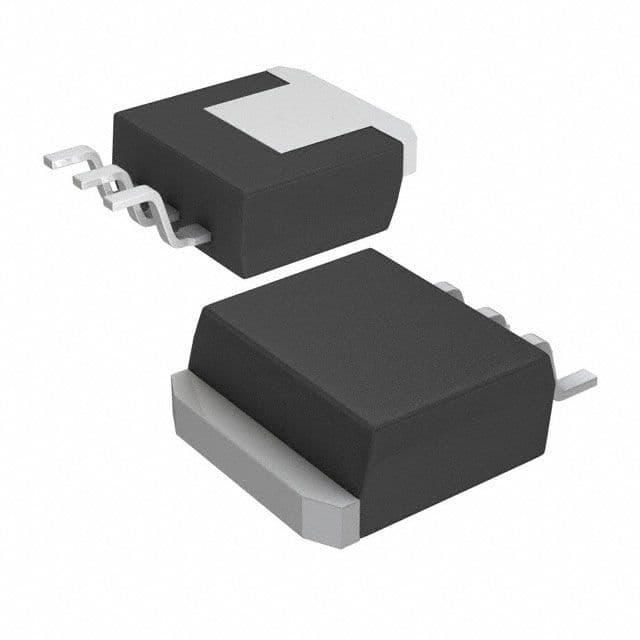

Product Images
