Adjustable positive linear voltage regulator, 1A output current, 26V maximum input voltage. Features a wide 5V to 20V adjustable output voltage range and 15mA quiescent current. Operates from 0°C to 125°C with a high power supply rejection ratio (PSRR). Surface mount TO-263 package.
PackageTO-263
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM2941CS technical specifications.
General
| Package/Case | TO-263 |
| Lead Free | Contains Lead |
| Max Input Voltage | 26V |
| Min Input Voltage | -15V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1A |
| Max Output Voltage | 20V |
| Min Output Voltage | 5V |
| Max Supply Current | 15mA |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 1A |
| Output Type | Adjustable |
| Output Voltage | 20V |
| Package Quantity | 45 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Quiescent Current | 15mA |
| Radiation Hardening | No |
| Reference Voltage | 1.313V |
| RoHS Compliant | No |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments LM2941CS Datasheet
Download the complete datasheet for Texas Instruments LM2941CS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

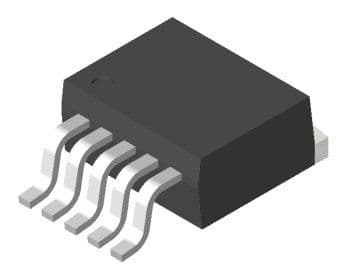

Product Images
