Adjustable positive linear voltage regulator, 1A output current, 500mV dropout voltage, and 26V maximum input voltage. Features high PSRR, an enable pin, and an adjustable output voltage range from 5V to 20V. Operates from 0°C to 125°C with a 10mA quiescent current. Packaged in a TO-263 surface-mount case.
PackageTO-263
Current Rating1A
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM2941CS/NOPB technical specifications.
General
| Package/Case | TO-263 |
| Current Rating | 1A |
| Dropout Voltage | 500mV |
| Height | 4.57mm |
| Lead Free | Contains Lead |
| Length | 10.16mm |
| Max Input Voltage | 26V |
| Min Input Voltage | -15V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1A |
| Max Output Voltage | 20V |
| Min Output Voltage | 5V |
| Max Supply Current | 15mA |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 1A |
| Output Type | Adjustable |
| Output Voltage | 20V |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Quiescent Current | 10mA |
| Reach SVHC Compliant | No |
| Reference Voltage | 1.313V |
| RoHS Compliant | Yes |
| Width | 8.64mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM2941CS/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2941CS/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

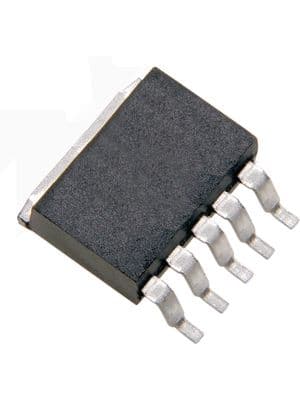

Product Images
