General purpose voltage comparator IC, featuring a single channel and BIPOLAR technology. Operates with dual supply voltages from 2.5V to 18V, or single supply from 5V to 36V. Offers a maximum output current of 50mA with TTL output type and a response time of 200ns. Input bias current is 250nA, with an input offset voltage of 7.5mV. Packaged in TO-99 with through-hole mounting, this component has a maximum power dissipation of 500mW and an operating temperature range of 0°C to 70°C.
PackageTO-99
Current7.5mA
MountingThrough Hole
Power500mW
Quick Jump:
Technical Specifications
Texas Instruments LM311H technical specifications.
General
| Package/Case | TO-99 |
| Input Bias Current | 250nA |
| Input Offset Voltage (Vos) | 7.5mV |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 2.5V |
| Max Input Current | 250nA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 500mW |
| Max Supply Current | -5mA |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 5V |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current | 50mA |
| Output Type | TTL |
| Package Quantity | 500 |
| Packaging | Bulk |
| Power Dissipation | 500mW |
| Quiescent Current | 7.5mA |
| Response Time | 200ns |
| RoHS Compliant | No |
| Supply Current | 7.5mA |
| Technology | BIPOLAR |
| Type | General Purpose |
| Voltage Gain | 106.02dB |
Compliance
| RoHS | Not Compliant |
Datasheet
Texas Instruments LM311H Datasheet
Download the complete datasheet for Texas Instruments LM311H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

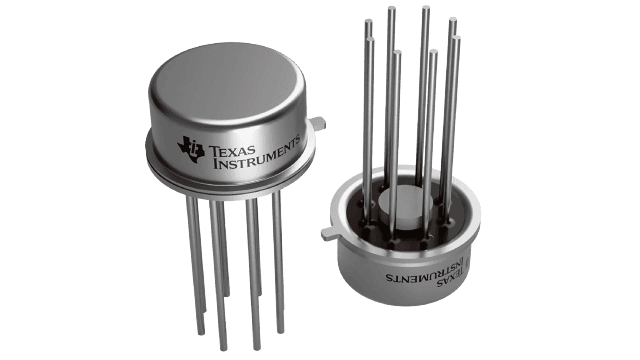

Product Images
