Adjustable positive linear voltage regulator with a 1.2V to 37V output range and a maximum output current of 250mA. Features a 4% accuracy and a 1.3V reference voltage. Operates from a 4.2V to 40V input voltage. Packaged in a TO-92 through-hole mount case, measuring 4.95mm in height and length, and 3.94mm in width. Suitable for operation between -40°C and 125°C.
PackageTO-92
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM317-LZ technical specifications.
General
| Accuracy | 4% |
| Package/Case | TO-92 |
| Height | 4.95mm |
| Lead Free | Lead Free |
| Length | 4.95mm |
| Max Input Voltage | 40V |
| Min Input Voltage | 4.2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 250mA |
| Max Output Voltage | 37V |
| Min Output Voltage | 1.2V |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Current | 100mA |
| Output Type | Adjustable |
| Output Voltage | 37V |
| Package Quantity | 1800 |
| Packaging | Bulk |
| Polarity | Positive |
| Reach SVHC Compliant | No |
| Reference Voltage | 1.3V |
| RoHS Compliant | No |
| Width | 3.94mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Texas Instruments LM317-LZ Datasheet
Download the complete datasheet for Texas Instruments LM317-LZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

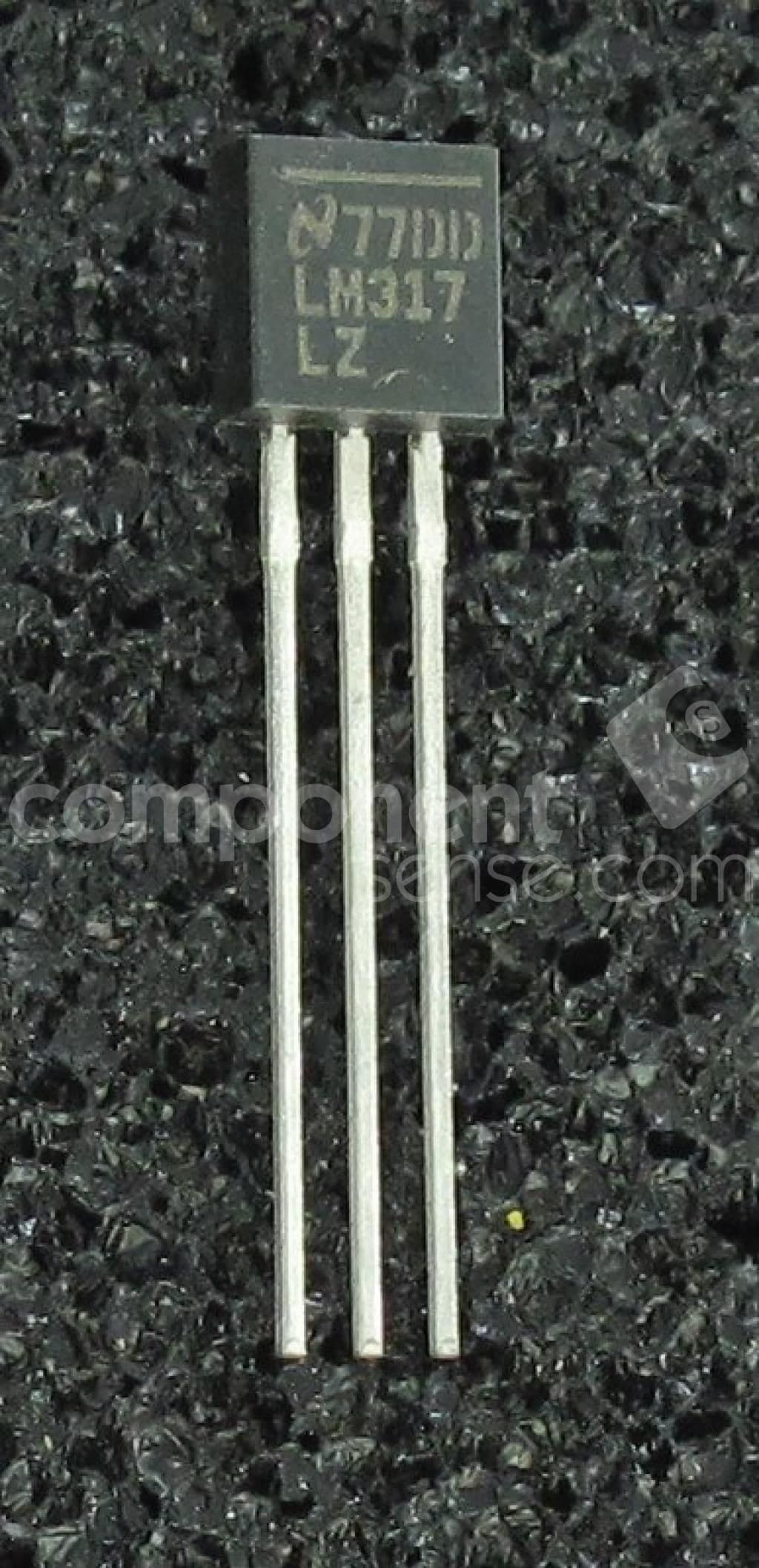

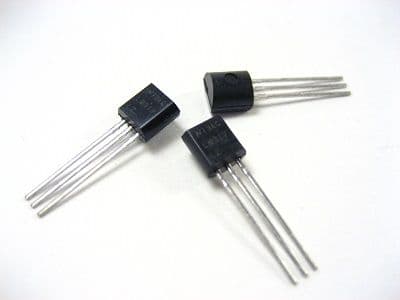

Product Images
