Adjustable positive linear voltage regulator, 1A output current, 40V maximum input voltage. Features a 1.25V reference voltage and a 65dB PSRR. Operates from 0°C to 125°C in a 4-SOT-223 surface mount package. Offers adjustable output voltage from 1.25V to 37V.
PackageSOT-223
Current Rating1A
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM317EMP/NOPB technical specifications.
General
| Package/Case | SOT-223 |
| Current Rating | 1A |
| Lead Free | Lead Free |
| Max Input Voltage | 40V |
| Min Input Voltage | 4.2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1A |
| Max Output Voltage | 37V |
| Min Output Voltage | 1.25V |
| Max Supply Voltage | 40V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 1A |
| Output Type | Adjustable |
| Output Voltage | 37V |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 65dB |
| Quiescent Current | 3.5mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Voltage | 1.25V |
| Termination | SMD/SMT |
| Thickness | 1.6mm |
| Tolerance | 5% |
| Weight | 0.006632oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM317EMP/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM317EMP/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

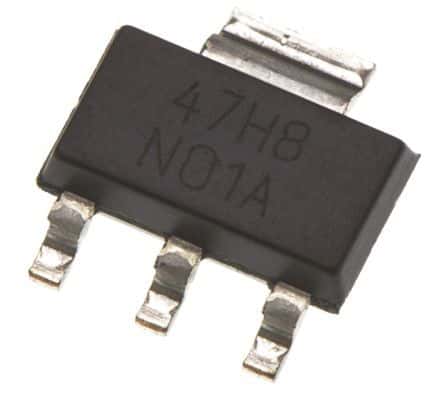

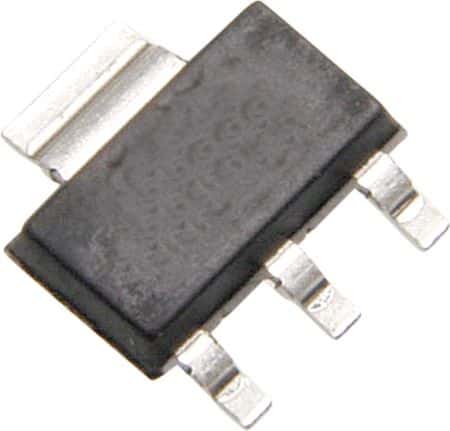

Product Images
