Adjustable positive linear voltage regulator, TO-3 package, featuring a 1.2V to 57V output voltage range and a maximum output current of 1.5A. Operates with a minimum input voltage of 4.2V and a maximum input voltage of 60V, with a dropout voltage of 2.25V. Offers a quiescent current of 60µA and a reference voltage of 1.3V. This through-hole mount component is RoHS compliant and suitable for operation between 0°C and 125°C.
PackageTO-3
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM317HVKSTEEL/NOPB technical specifications.
General
Package/Case
TO-3
Dropout Voltage
2.25V
Lead Free
Lead Free
Max Input Voltage
60V
Min Input Voltage
4.2V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
1.5A
Max Output Voltage
57V
Min Output Voltage
1.2V
Mount
Through Hole
Number of Outputs
1
Output Current
1.5A
Output Type
Adjustable
Output Voltage
57V
Package Quantity
50
Packaging
Tray
Polarity
Positive
Quiescent Current
60uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Voltage
1.3V
RoHS Compliant
Yes
Series
LM317HV
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM317HVKSTEEL/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM317HVKSTEEL/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

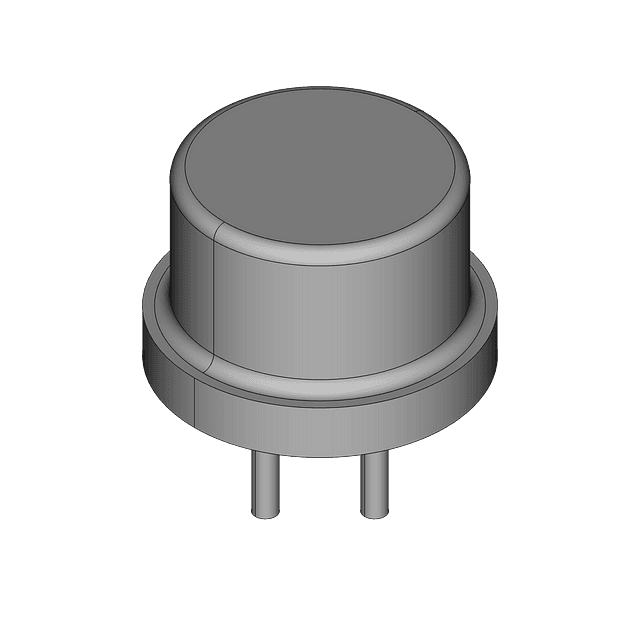

Product Images
