Adjustable positive linear voltage regulator, capable of 1.5A output current with a maximum output voltage of 57V. Features a wide input voltage range from 4.2V to 60V and a low dropout voltage of 2.25V. Operates across a temperature range of 0°C to 125°C, housed in a TO-220 package for through-hole mounting. This RoHS compliant component offers a Power Supply Rejection Ratio of 65dB.
PackageTO-220
Current Rating1.5A
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM317HVT/NOPB technical specifications.
General
Package/Case
TO-220
Current Rating
1.5A
Dropout Voltage
2.25V
Height
8.89mm
Lead Free
Lead Free
Length
10.16mm
Min Current Limit
1.5A
Max Input Voltage
60V
Min Input Voltage
4.2V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
1.5A
Max Output Voltage
57V
Min Output Voltage
1.25V
Max Supply Voltage
60V
Min Supply Voltage
3V
Mount
Through Hole
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1.5A
Output Type
Adjustable
Output Voltage
57V
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
65dB
Quiescent Current
60uA
Reach SVHC Compliant
No
Reference Voltage
1.3V
RoHS Compliant
Yes
Termination
Through Hole
Tolerance
5%
Width
4.7mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM317HVT/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM317HVT/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

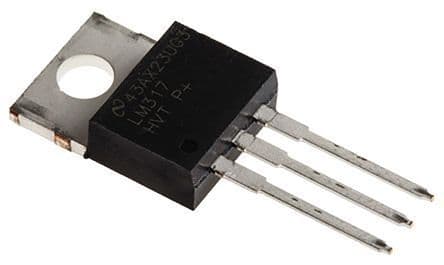

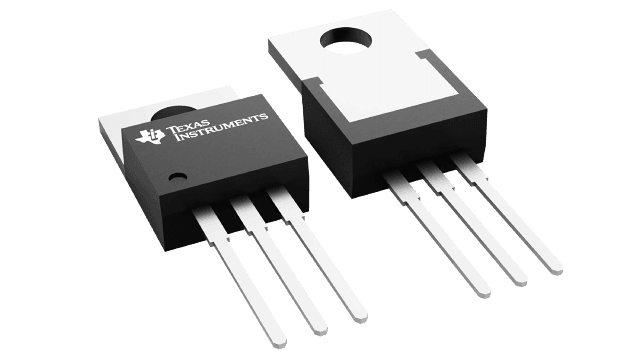

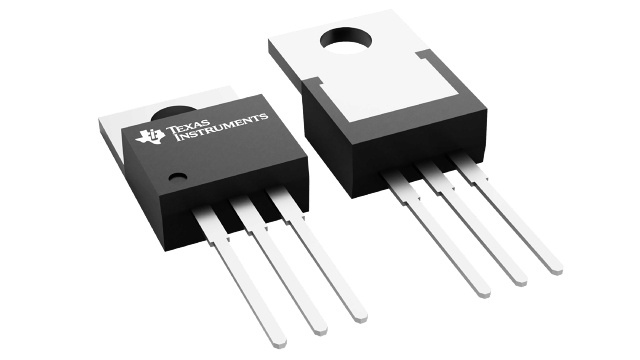

Product Images
