Adjustable positive linear voltage regulator IC, featuring a 1.2V to 37V output voltage range and a maximum output current of 1.5A. This surface mount component operates with an input voltage from 4.2V to 40V, offering a 1.3V reference voltage and 80dB power supply rejection ratio. Packaged in an 8-pin SOIC with dimensions of 4.9mm length, 3.9mm width, and 1.45mm height, it supports a wide operating temperature range of -40°C to 125°C.
PackageSOIC
Current Rating1A
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM317LM technical specifications.
General
| Package/Case | SOIC |
| Current Rating | 1A |
| Height | 1.45mm |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Max Input Voltage | 40V |
| Min Input Voltage | 4.2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.5A |
| Max Output Voltage | 37V |
| Min Output Voltage | 1.2V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 100mA |
| Output Type | Adjustable |
| Output Voltage | 37V |
| Package Quantity | 95 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 80dB |
| Reach SVHC Compliant | No |
| Reference Voltage | 1.3V |
| RoHS Compliant | No |
| Width | 3.9mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Texas Instruments LM317LM Datasheet
Download the complete datasheet for Texas Instruments LM317LM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

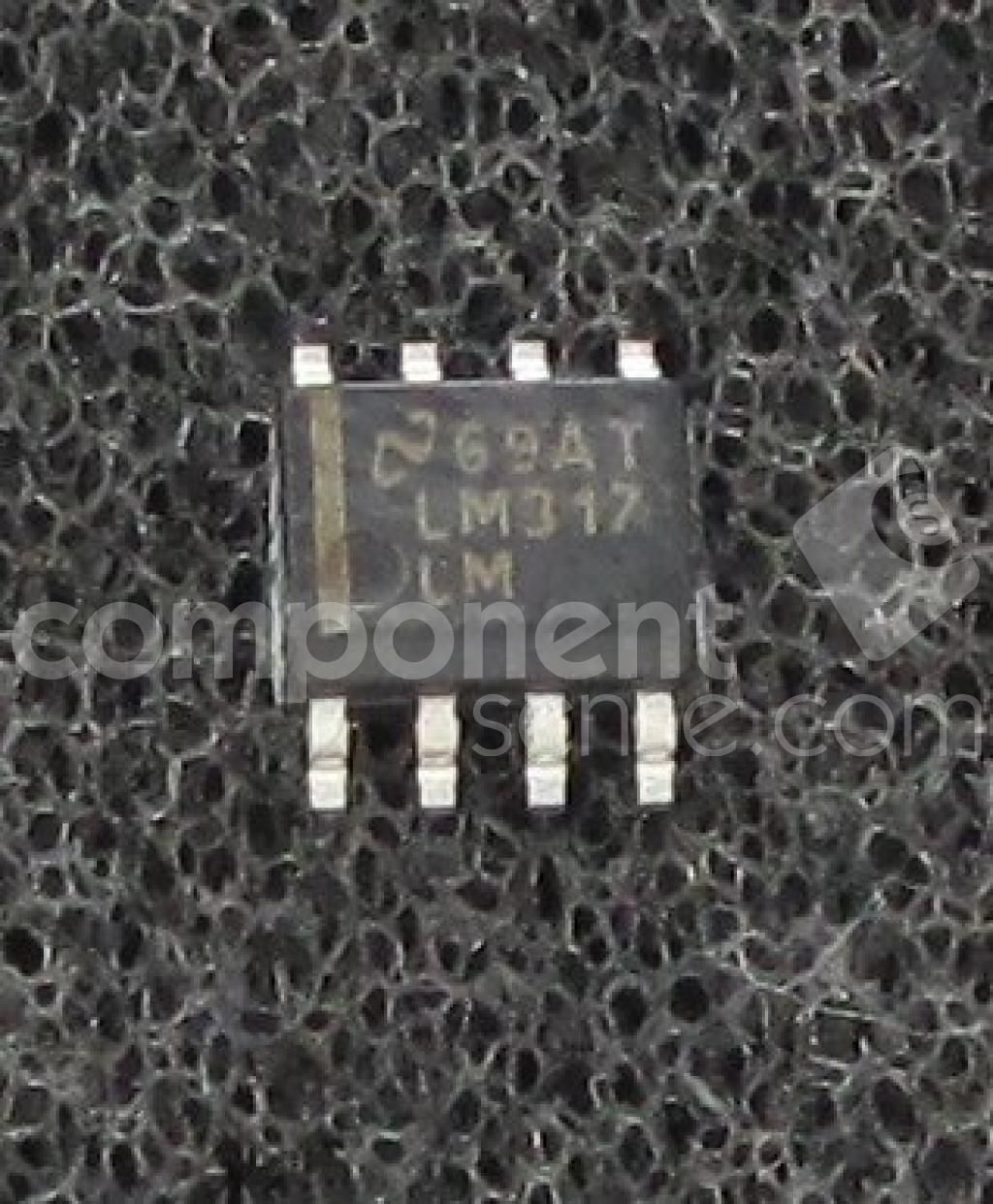

Product Images
