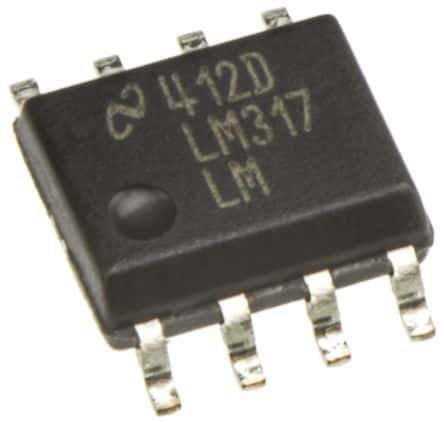

Adjustable positive linear voltage regulator, offering a 1.2V to 37V output range with a 100mA maximum output current. Features a high 80dB Power Supply Rejection Ratio (PSRR) and a low 1.8V dropout voltage. Operates with input voltages from 4.2V to 40V, supporting a maximum power dissipation of 625mW. Packaged in an 8-SOIC surface-mount case with dimensions of 4.9mm (L) x 3.9mm (W) x 1.45mm (H). Suitable for operation across a wide temperature range of -40°C to 125°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LM317LM/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments LM317LM/NOPB technical specifications.
| Package/Case | SOIC |
| Current Rating | 1A |
| Dropout Voltage | 1.8V |
| Height | 1.45mm |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Min Current Limit | 100mA |
| Max Input Voltage | 40V |
| Min Input Voltage | 4.2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 100mA |
| Max Output Voltage | 37V |
| Min Output Voltage | 1.2V |
| Max Power Dissipation | 625mW |
| Max Supply Voltage | 40V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 100mA |
| Output Type | Adjustable |
| Output Voltage | 37V |
| Package Quantity | 95 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 80dB |
| Quiescent Current | 120uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Voltage | 1.3V |
| RoHS Compliant | Yes |
| Series | LM317L-N |
| Termination | SMD/SMT |
| Tolerance | 5% |
| Voltage | 37V |
| Width | 3.9mm |
| RoHS | Compliant |
