Adjustable positive linear voltage regulator, offering a 100mA output current and a maximum output voltage of 37V. Features a high Power Supply Rejection Ratio (PSRR) of 65dB and a low quiescent current of 120uA. Operates with an input voltage range from 4.2V to 40V, with a maximum power dissipation of 625mW. Packaged in an 8-SOIC surface mount package, this lead-free component is RoHS compliant and suitable for operation between -40°C and 125°C.
PackageSOIC
Voltage37V
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM317LMX/NOPB technical specifications.
General
Package/Case
SOIC
Dropout Voltage
1.8V
Height
1.45mm
Lead Free
Lead Free
Length
4.9mm
Max Input Voltage
40V
Min Input Voltage
4.2V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Output Voltage
37V
Min Output Voltage
1.2V
Max Power Dissipation
625mW
Max Supply Voltage
40V
Mount
Surface Mount
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
100mA
Output Type
Adjustable
Output Voltage
37V
Package Quantity
2500
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
65dB
Quiescent Current
120uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Voltage
1.3V
RoHS Compliant
Yes
Thickness
1.58mm
Voltage
37V
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM317LMX/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM317LMX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

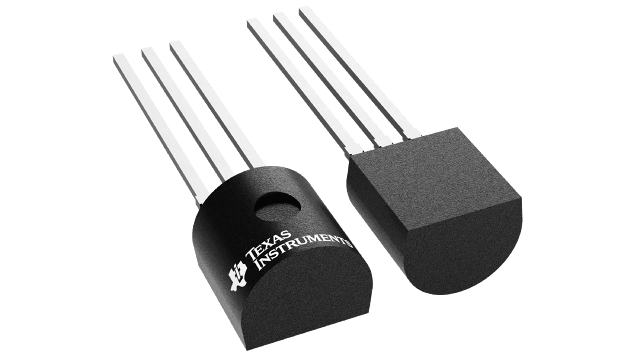

Product Images
