Adjustable positive linear voltage regulator, 500mA output current, 1.25V to 37V adjustable output voltage. Features a maximum input voltage of 40V and a PSRR of 80dB. Operates across a temperature range of -40°C to 125°C. Packaged in a 4-pin SOT-223 surface mount package, measuring 6.5mm x 3.5mm x 1.8mm. Lead-free and RoHS compliant.
PackageSOT-223-4
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM317MDCYR technical specifications.
General
| Package/Case | SOT-223-4 |
| Height | 1.8mm |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Max Input Voltage | 40V |
| Min Input Voltage | 4.2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Output Voltage | 37V |
| Min Output Voltage | 1.25V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 500mA |
| Output Type | Adjustable |
| Output Voltage | 37V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 80dB |
| Quiescent Current | 3.5mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Voltage | 1.3V |
| RoHS Compliant | Yes |
| Thickness | 1.6mm |
| Weight | 0.006632oz |
| Width | 3.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM317MDCYR Datasheet
Download the complete datasheet for Texas Instruments LM317MDCYR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

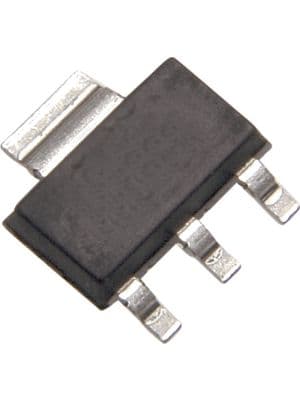

Product Images
