Adjustable positive linear voltage regulator, outputting up to 1.5A with a maximum output voltage of 37V. Features a low dropout voltage of 3mV, a maximum input voltage of 40V, and operates from 0°C to 125°C. Packaged in a TO-263 surface mount case, this RoHS compliant component offers a power supply rejection ratio of 80dB.
PackageTO-263
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM317SX/NOPB technical specifications.
General
Package/Case
TO-263
Dropout Voltage
3mV
Lead Free
Contains Lead
Min Current Limit
1.5A
Max Input Voltage
40V
Min Input Voltage
4.2V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
1.5A
Max Output Voltage
37V
Min Output Voltage
1.2V
Mount
Surface Mount
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Current
1.5A
Output Type
Adjustable
Output Voltage
37V
Package Quantity
500
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
80dB
Quiescent Current
3.5mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LM317-N
Thickness
4.44mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM317SX/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM317SX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

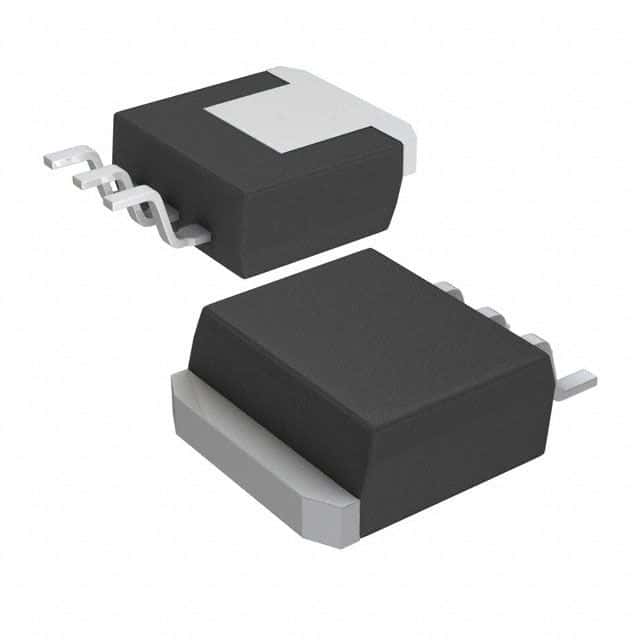

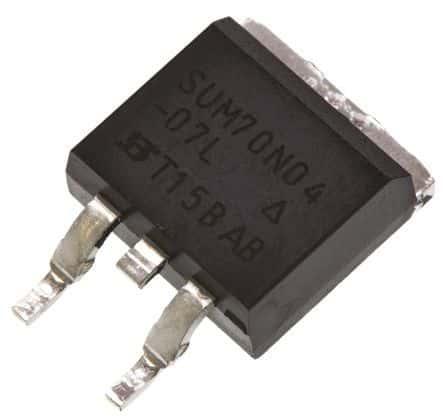

Product Images
