Adjustable step-down DC-DC converter, ideal for RF power amplifiers, featuring a 2.7V to 5.5V input voltage range and up to 500mA output current. This non-isolated, surface-mount device offers an adjustable output voltage from 800mV to 3.6V with a maximum duty cycle of 96%. Operating from -30°C to 85°C, it includes a bypass mode and synchronous rectification for efficient power management. Packaged in a miniature 10-DSBGA with a height of 675µm and thickness of 360µm, this RoHS compliant component is supplied on tape and reel.
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM3203TL/NOPB technical specifications.
General
| Height | 675um |
| Isolation | Non-Isolated |
| Lead Free | Lead Free |
| Max Duty Cycle | 96% |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Output Current | 500mA |
| Max Output Voltage | 3.6V |
| Min Output Voltage | 800mV |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Current | 500mA |
| Operating Supply Voltage | 5.5V |
| Output Configuration | Positive |
| Output Current | 500mA |
| Output Type | Adjustable |
| Output Voltage | 3.6V |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | PowerWise® |
| Synchronous Rectifier | Yes |
| Thickness | 360um |
| Width | 0m |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM3203TL/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM3203TL/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

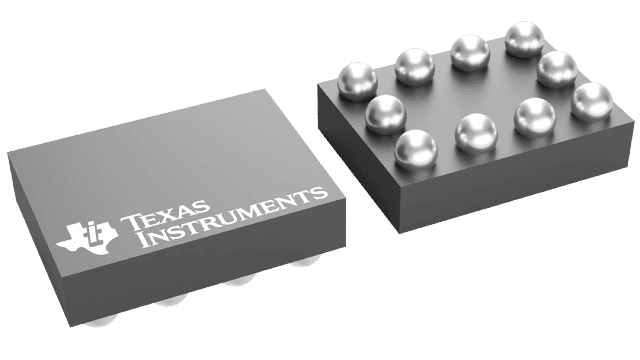

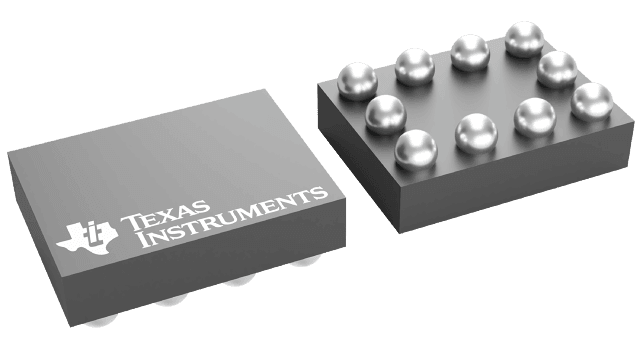

Product Images
