Adjustable DC-DC buck controller with a maximum output current of 650mA and an adjustable output voltage range from 800mV to 3.6V. Features a maximum input voltage of 5.5V, a minimum input voltage of 2.7V, and a high maximum duty cycle of 96%. This surface mount integrated circuit offers a single positive output and includes a synchronous rectifier for improved efficiency. Operating temperature range is -30°C to 85°C, with a fall time of 20µs. Packaged in tape and reel, this non-isolated, RoHS compliant component is suitable for power management applications.
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM3205TL/NOPB technical specifications.
General
Fall Time
20us
Isolation
Non-Isolated
Lead Free
Contains Lead
Max Duty Cycle
96%
Max Input Voltage
5.5V
Min Input Voltage
2.7V
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Output Current
650mA
Max Output Voltage
3.6V
Min Output Voltage
800mV
Mount
Surface Mount
Number of Outputs
1
Operating Supply Current
650mA
Operating Supply Voltage
5.5V
Output Configuration
Positive
Output Current
650mA
Output Type
Adjustable
Output Voltage
3.6V
Package Quantity
250
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
PowerWise®
Synchronous Rectifier
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM3205TL/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM3205TL/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

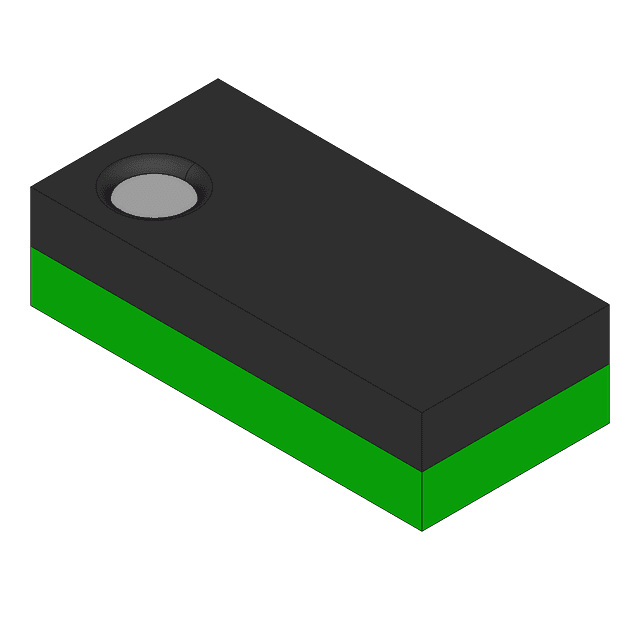

Product Images
